BG08DY

Replace valve control technology with pump control technology, eliminate throttle loss, no overflow loss, energy saving effect is significant (can save 60% of electricity)
Tank volume reduced by 75%, reducing the use of hydraulic fluid.
Low heat balance temperature, no need for cooling device, extended life of hydraulic components
  • BG08DY

  • SZOBTE

Availability:
Quantity:

Product Description

Features

Replace valve control technology with pump control technology, eliminate throttle loss, no overflow loss, energy saving effect is significant (can save 60% of electricity)

Tank volume reduced by 75%, reducing the use of hydraulic fluid.

Low heat balance temperature, no need for cooling device, extended life of hydraulic components

The servo motor can be significantly overloaded in a short time, and the actual installation power is only 50% of the theoretical installation power.

The high-performance special controller combines various advanced control strategies, such as pressure closed-loop, position closed-loop, position pressure compound control and synchronization control, to achieve the compound control of position, pressure and flow. The repeated positioning accuracy of the system is up to ±0.005mm, and the synchronization accuracy is within ±0.020mm

Products  Overview


Electro-hydraulic servo press is the electro-hydraulic servo mix by controlling the servo motor driven hydraulic pump control system to implement two-way pump load position, speed, pressure closed loop control, maximizing the servo control and the advantage of two aspects of the hydraulic control, is the best way of combine the servo press and digital electronic hydraulic press.

DSVP electro-hydraulic hybrid drive system can achieve high precision pressure, position and synchronization control. The repeated positioning accuracy of the system is ±0.005mm, and the synchronization accuracy is within ±0.02mm.

Sensitivity demands of hydraulic oil particles decreased from NS7 to NS9.

Compared to the electric drive, there is no need to replace the ball screw and grease maintenance.

A 1000KN bending machine equipped with DSVP energy saving system can reduce co2 emissions by 6000Kg per year, equivalent to planting 330 trees. It can also save 150 liters of hydraulic oil and extend the life of oil products by three times. Save 6,000 KWH per year

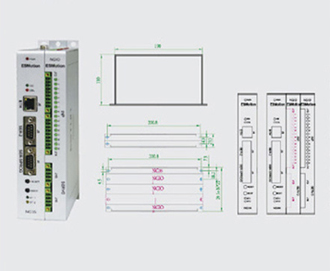

Electro-hydraulic servo controller


16 axis analog control, 32 axis pulse + direction control

Supports 64 axis CANopen or EtherCAT control

16Mb RAM,4Mb FLASH, 32Kb power off memory RAM

64Mb flash drive, FAT16 format

10/100mbps Ethernet interface

One RS232 interface and one RS232/RS485 interface

128 optically isolated 24V PNP digital input ports are available

Could be extend 112 optically isolated 24V 1.2a digital output ports

Eight 10-bit analog input ports


 Applications


1. Automobile industry: shock absorber, gear, pin shaft, connecting rod, bushing, cylinder head, cylinder sleeve, steering gear, brake disc and other components pressure assembly.

2. Motor industry: pressing assembly of stator, spindle, rotor, bearing, shell and other components.

3. Electronics industry: power tools, circuit boards, circuit boards, connectors, electronics and other parts pressing.

4. Household appliances industry: household appliances accessories pressing, riveting, etc.

5. Other industries: need precise servo press-assembly environment.
