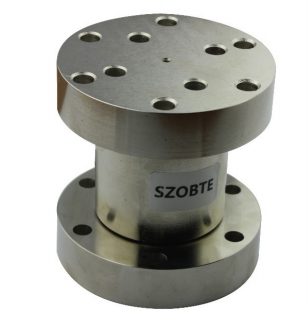

CL-TR1 Three Dimensional Force Sensor

Three dimensional force sensor

Senior alloy steel

n Easy to install

Low height and strong rigidity

Applications: Suitable for industrial weighing systems, overload protection on robot hands, testing machine, etc
  • CL-TR1

  • SZOBTE

  • CL-TR1

Availability:
Quantity:

Product Description

CL-TR1 Three Dimensional Force Sensor

                                                           Three dimensional Type Series


 Feature



Three dimensional force sensor

Senior alloy steel

Easy to install

Low height and strong rigidity

Applications: Suitable for industrial weighing systems, overload protection on robot hands, testing machine, etc





Capacities

0-100kg, 200kg,300kg, 500kg, 1t, 2t, 3t

Specification



Rated Output

1.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.05% of rated output

Hysteresis

±0.05% of rated output

Repeatability

±0.05% of rated output

Temp. effect on output

0.003% of applied output/

Temp. Effect on zero

0.003% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

  2m

type

CL-TR1/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)








图片 102

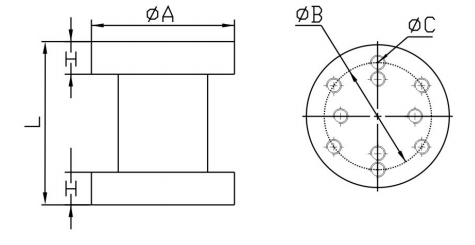

Dimensions













       Size(mm)



CAP(t)

ΦA

ΦB

ΦC

L

H

X、Y

Z轴

96

80

6~Φ9

100

22

0.1~1t

0.2t~2t

1.5~3t

3~6t

135

108

8~Φ13

135

30

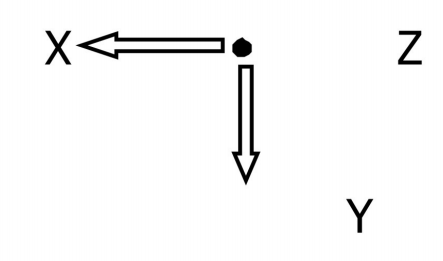

Force Direction

图片 103















Note: The information is for reference only. The details are subject to orders
