CL-TR2

Availability:
Quantity:

Product Description

Feature

Three dimensional force sensor

Stainless steel material

Low height and strong rigidity

Applications: Suitable for industrial weighing systems, overload protection on robot hands, testing machine, etc

Capacities

 0-100kg, 200kg,300kg, 500kg

Specification

Rated Output

1.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.5% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.05% of rated output

Temp. effect on output

≤0.003% of applied output/℃

Temp. Effect on zero

≤0.003% of rated output/℃

Safe temp. Range

-10℃ to+70℃

Temp.Compensated

-10℃ to+40℃

Safe Overload

150%

Input Impedance

387Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

≥5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

  2m

type

CL-TR2/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

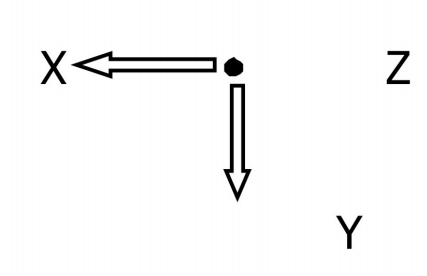

Force Direction

Note: The information is for reference only. The details are subject to orders
