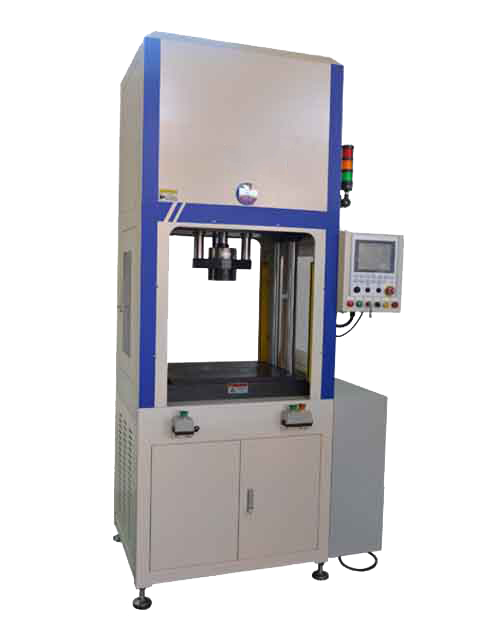

Four column servo hydraulic press

Servo oil press adopts servo motor combined with imported oil pump and imported servo valve for precise control, featuring high sensitivity and fast response.
High precision displacement sensor is adopted for detection (the displacement sensor is imported non-contact magnetic suspension structure). The repeated positioning precision is high, and the repeated precision can reach 3/10000.
The machine operation is more humanized, the man-machine interface is simple and easy to operate, and the pressure, position and speed can be set freely and adjusted on the computer screen. Equipment datum can communicate with computers and PC terminals, remote monitoring, data storage cloud, and achieve lean management.
  • BG09S
  • SZOBTE
Availability:
Quantity:

Product Description

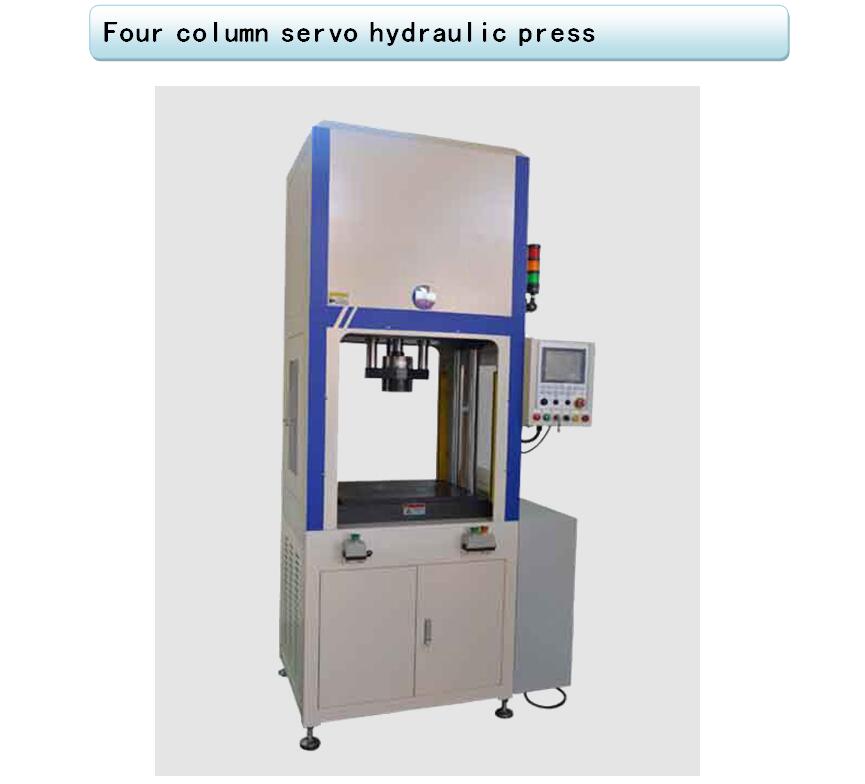

QQ截图20191024151642

  Product  Overview



Servo oil press adopts servo motor combined with imported oil pump and imported servo valve for precise control, featuring high sensitivity and fast response.

High precision displacement sensor is adopted for detection (the displacement sensor is imported non-contact magnetic suspension structure). The repeated positioning precision is high, and the repeated precision can reach 3/10000.

The machine operation is more humanized, the man-machine interface is simple and easy to operate, and the pressure, position and speed can be set freely and adjusted on the computer screen. Equipment datum can communicate with computers and PC terminals, remote monitoring, data storage cloud, and achieve lean management.

In the fully automatic production mode, the production cycle can be shortened by about 40% compared with the traditional machine.

1.    Servo hydraulic system is adopted to control, which can meet the requirements of different crafts for the change of speed and pressure, and run more smoothly.

2.    Low noise: servo motor has lower operating noise than ordinary motor, adjustable speed, more quiet at low speed.

3.    Fast response: the servo motor has high sensitivity and fast response, and the starting time is only 0.05 seconds.

4.    Low temperature performance: servo hydraulic machine has no overflow, so the heat generated is very small. No cooling system is required.

5.    High precision positioning function: servo hydraulic machine can directly position, pressure and position can be set freely. Especially suitable for pressing installation and other pressing technology







Applications



1. Automobile industry: shock absorber, gear, pin shaft, connecting rod, bushing, cylinder head, cylinder sleeve, steering gear, brake disc and other components pressure assembly.

2. Motor industry: pressing assembly of stator, spindle, rotor, bearing, shell and other components.

3. Electronics industry: power tools, circuit boards, circuit boards, connectors, electronics and other parts pressing.

4. Household appliances industry: household appliances accessories pressing, riveting, etc.

5. Other industries: need precise servo press-assembly environment.



Note: The information is for reference only. The details are subject to orders
