LSZ-A00 S-Type Load Cell

S-Type load cell
Senior alloy steel
Easy to install, stable & reliable
Apply to pull and push, testing machine, batching scales, crane scales and special scales, etc.
  • LSZ-A00
  • SZOBTE
  • LSZ-A00
Availability:
Quantity:

Product Description

LSZ-A00 S-Type Load Cell


Feature



S-Type  load cell

Senior alloy steel

Easy to install, stable & reliable

Apply to pull and push, testing machine, batching scales, crane scales and special scales, etc.


Capacities

0-10kg,20kg,30kg,50kg,100kg,200kg,300kg,500kg

1t,2t,3t,5t,7.5t.10t

  Specification

Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.02% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

365 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-5t(3.5m);10t(6m)

type

LSZ-A00/10kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(

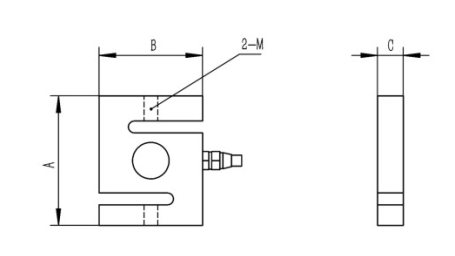

 Dimensions


A00 CC



                 Size(mm)

CAP(kg)

A

B

C

M

   0-30

64

51

12.7

M8

50-700

76.2

51

19.1

M12

1000-3000

80

60

30

M16

5000

108

76.2

36.98

M24

10000

177.8

125.5

51

M30





Note: The information is for reference only. The details are subject to orders
