LSZ-A00C S-Type Load Cell

S-Type load cell

Senior stainless steel

Easy to install, stable & reliable

Apply to testing machine, batching scales,crane scales,pull and push,Button Tester and special scales,etc.
  • LSZ-A00C
  • SZOBTE
  • LSZ-A00C
Availability:
Quantity:

Product Description

LSZ-A00C S-Type Load Cell


                                                                     S Type Series


Feature



S-Type  load cell

Senior stainless steel

Easy to install, stable & reliable

Apply to testing machine, batching scales,crane scales,pull and push,Button Tester  and special scales,etc.






Capacities

0-2kg,3kg,5kg,10kg,20kg,30kg,50kg

 Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.02% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

365 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A00C/2kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

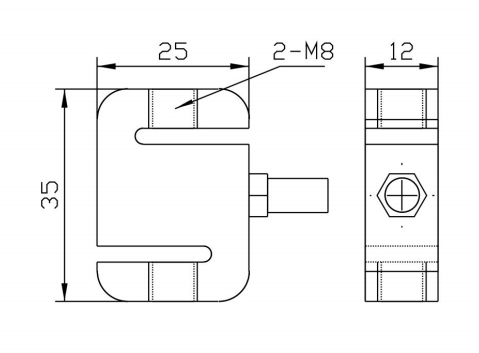

Dimensions

图片 3

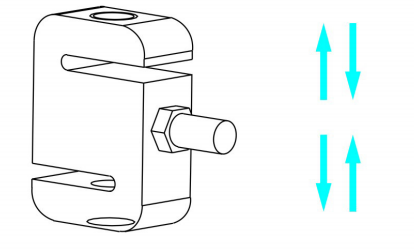

Force Direction

 图片 2








Note: The information is for reference only. The details are subject to orders
