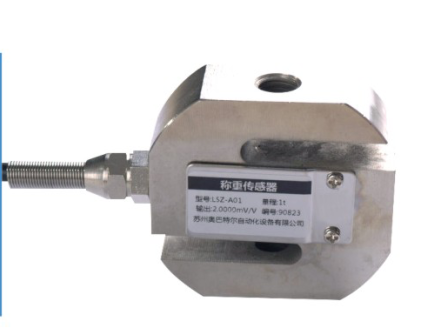

LSZ-A01 S-Type Load Cell

S load cell

Senior alloy steel

Easy to install, stabile & reliable

Apply to testing machine, batching scales,crane scales and special scales,etc.
  • LSZ-A01
  • SZOBTE
  • LSZ-A01
Availability:
Quantity:

Product Description

LSZ-A01 S-Type Load Cell


Feature



S  load cell

Senior alloy steel

Easy to install, stabile & reliable

Apply to testing machine, batching scales,crane scales and special scales,etc.






Capacities

0-20kg,50kg,75kg,100kg,150kg,200kg,350kg,1000kg,2000kg,3000kg

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP67

Construction

3.5m

type

LSZ-A01-CPA

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)



Dimensions

图片 8









            Size(mm) CAP(kg)

AH

B(W)

C(B)

M(D)

205075100150

64

70

12

M8

200-350

64

70

20

M12

1000

64

70

25

M12

2000

92

86

32

M20


































注:資料僅供參考,具體以實際訂貨為准。
