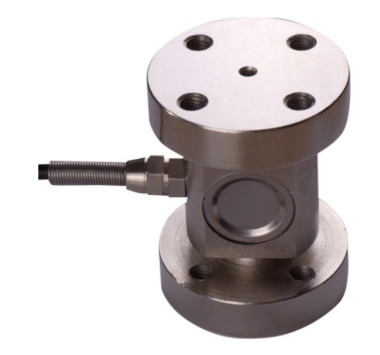

LSZ-A02D Multi-column Load Cell

Multi-column load cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to testing machine, batching scales, pull and push, button tester and special scales,etc
  • LSZ-A02D
  • SZOBTE
  • LSZ-A02D
Availability:
Quantity:

Product Description

LSZ-A02D Multi-column Load Cell                                                                                                                                                                                                        Canister” Type Series



 Feature



Multi-column load cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to testing machine, batching scales, pull and push, button tester and special scales,etc




Capacities

0-50kg,100kg,200kg,500kg,1t,2t,3t

Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-A02D/50kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

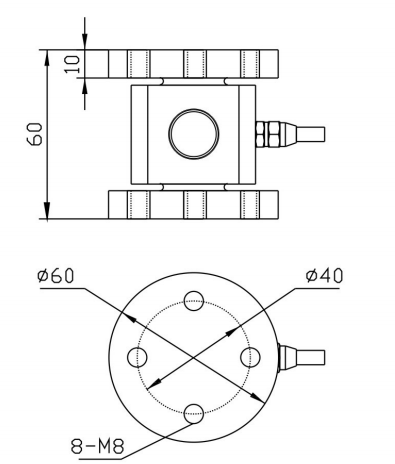

 Dimensions





 图片 41

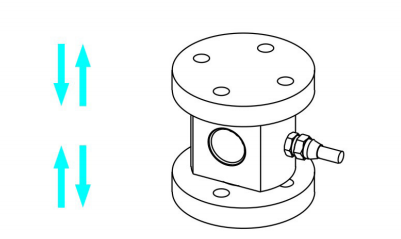

Force Direction

图片 42





Note: The information is for reference only. The details are subject to orders
