LSZ-A03 Multi-column load cell

Multi-column load cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to testing machine, batching scales, pull and push, button tester and special scales,etc
  • LSZ-A03
  • SZOBTE
  • LSZ-A03
Availability:
Quantity:

Product Description

                                                        Canister Type Series


 Feature



Multi-column load cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to testing machine, batching scales, pull and push, button tester and special scales,etc



Capacities

0-200kg,500kg,700kg,1t,5t,10t,20t,30t ,50t,100t

  Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.01% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

O-15t(3m) 35-100t(12m)

type

LSZ-A03/200kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

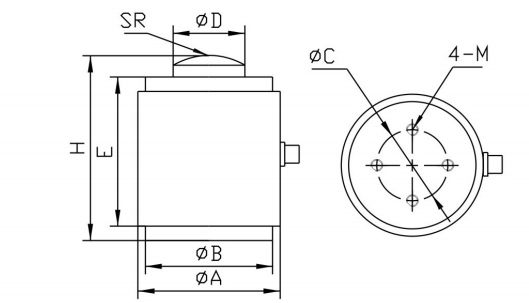

 Dimensions

图片 47









       Size(mm)



CAP(t)

ΦA

ΦB

ΦC

ΦD

H

E

M

SR

0~0.5

59

52

30

20

88

79

5

35

1~5

74

68

38

28

100

91

6

65

7~10

86

78

56

32

130

120

8

85

15~30

86

78

56

40

140

129

10

200

40~60

100

92

68

80

150

133

12

350

100

107

98

68

80

170

156

16

500

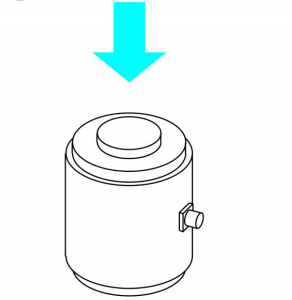

Force Direction




 图片 50





Note: The information is for reference only. The details are subject to orders
