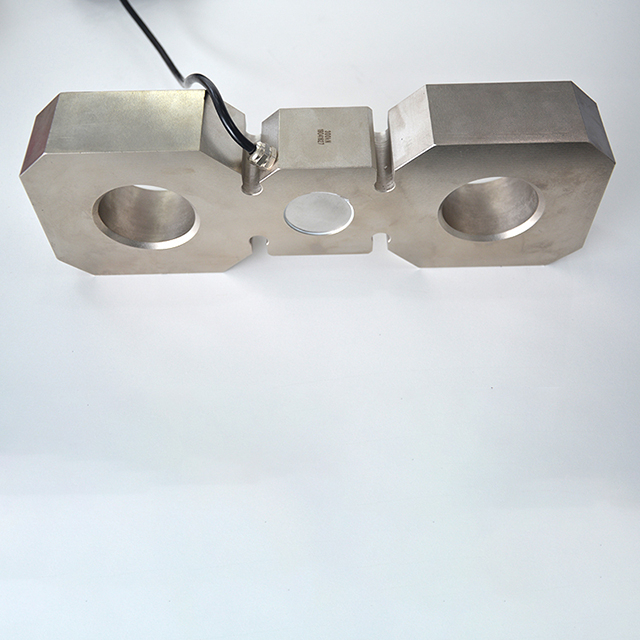

LSZ-A05 Load Cell

Ring tension sensor board

n Senior alloy steel

n Easy to install, high stability

n After a good moisture-proof sealed

Applications: Ideal for hostile environment, etc
  • LSZ-A05
  • SZOBTE
Availability:
Quantity:

Product Description

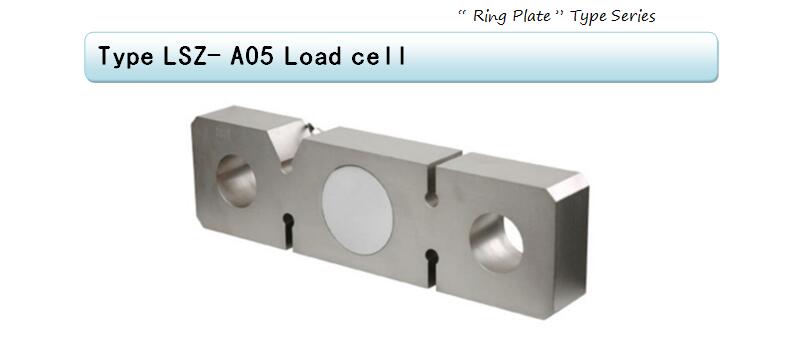

QQ截图20191021133520

  Feature



n  Ring tension sensor board

n  Senior alloy steel

n  Easy to install, high stability

n  After a good moisture-proof sealed

l  Applications: Ideal for hostile environment, etc


 Capacities

0-2t,  3t, 5t, 7t, 10t, 15t, 20t, 50t, 70t, 100t, 150t

  Specification



Rated Output

1.0-1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-A05/2t

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

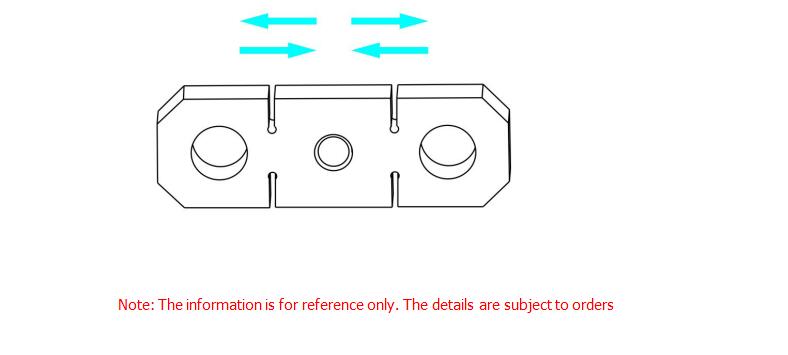

Force Direction


QQ截图20191021133742
