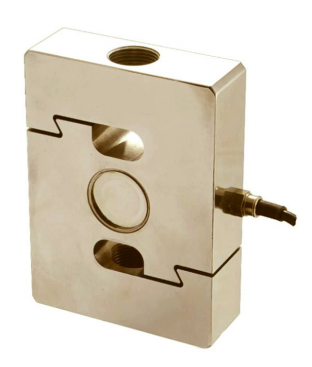

LSZ-A06 S-Type Load Cell

S-Type load cell

Senior alloy steel

Easy to install, stable & reliable

Apply to testing machine, batching scales,crane scales and special scales,etc.
  • LSZ-A06

  • SZOBTE

  • LSZ-A06

Availability:
Quantity:

Product Description

LSZ-A06 S-Type Load Cell

                                                                       S Type Series


 Feature



S-Type load cell

Senior alloy steel

Easy to install, stable & reliable

Apply to testing machine, batching scales,crane scales and special scales,etc.





Capacities

 0-100kg, 200kg, 300kg, 500kg, 10t

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.01% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A01-CAP

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

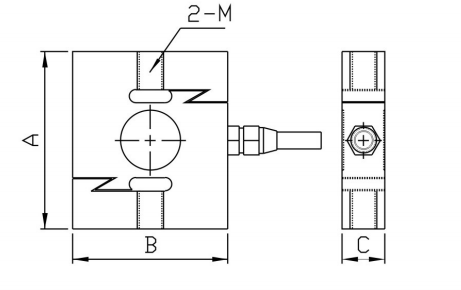

 Dimensions

图片 6




            Size(mm)

CAP(kg)

A

B

C

M

100~500

80

70

19.1

M12

1000~1500

80

70

25.4

M12

2000~5000

108

92

25.4

M18×1.5

10000

178

130

51

M30×2

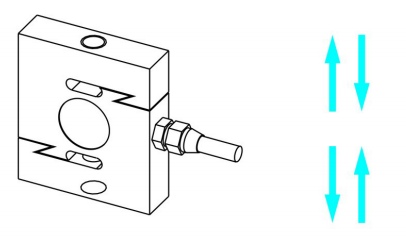

Force Direction



图片 7



Note: The information is for reference only. The details are subject to orders
