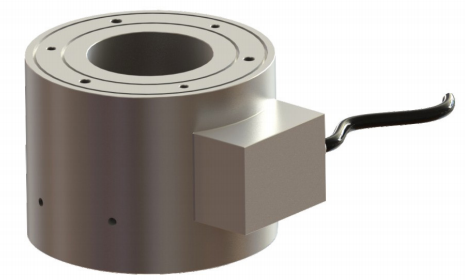

LSZ-A08 Multi-Column Load Cell

Made of stainless steel with good stability

Size and capacity could be customized

Applications: Mainly used for equipments of punching, testing equipments of impact force, pneumatic hydraulic equipments
  • LSZ-A08
  • SZOBTE
  • LSZ-A08
Availability:
Quantity:

Product Description



LSZ-A08 Multi-Column Load Cell

                                                                                                Canister Type Series

 Feature



Made of stainless steel with good stability

Size and capacity could be customized

Applications: Mainly used for equipments of punching, testing equipments of impact force, pneumatic hydraulic equipments





Capacities

20t, 30t, 40t, 50t

  Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A08/50kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

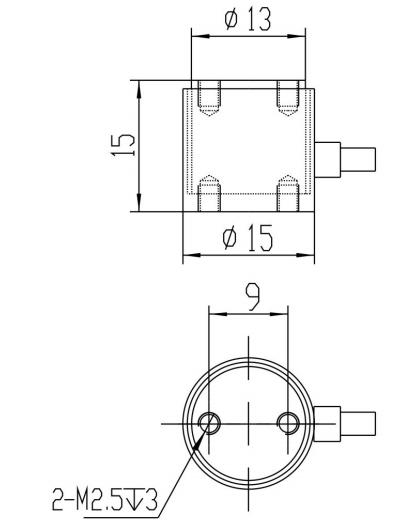

 Dimensions

图片 69


      Size(mm)



CAP(t)

H

C

ΦD1

ΦD2

ΦD3

ΦB

E

MA

20

60

96

80

40.4

32

64

6

M88

30

60

96

80

52

32

64

6

M88

40

100

188

168

88

68

130

8

M1215

50

100

188

168

106

68

130

8

M1215

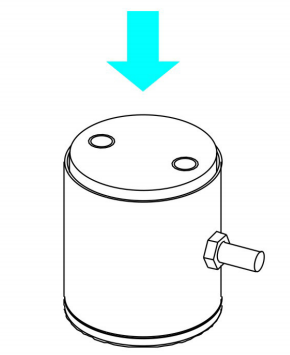

  Force Direction


图片 70






  Note: The information is for reference only. The details are subject to orders
