LSZ-A16 Multi-column Load Cell

Multi-column load cell
Senior alloy steel
Structure is simple, safe and reliable
Can resist lateral force
Applications: Can be used in hars environments, such as wet or corrosive conditions
  • LSZ-A16
  • SZOBTE
  • LSZ-A16
Availability:
Quantity:

Product Description

LSZ-A16 Multi-column Load Cell                                                                                                                                                                                                                                                                                                                                                                                         “ Canister Type Series

Feature



Multi-column load cell

Senior alloy steel

Structure is simple, safe and reliable

Can resist lateral force

Applications: Can be used in hars environments, such as wet or corrosive conditions



Capacities


0-150kg

Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-15t(3m),35-100t(12m)

type

LSZ-A16/200kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

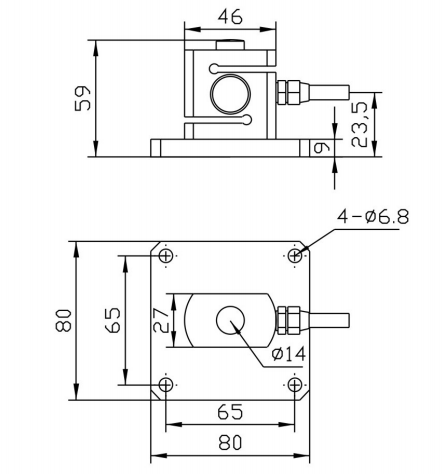

 Dimensions

图片 57

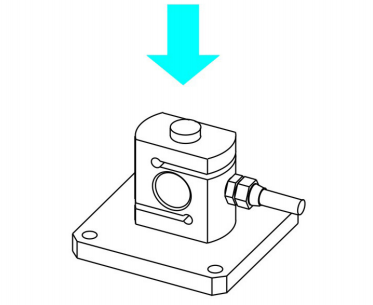

Force Direction

 图片 58








Note: The information is for reference only. The details are subject to orders
