LSZ-A23 weighing module

Senior alloy steel
Can be directly installed on the ground or base structure
Easy to install, stable & reliable
explosion-proof
Applications: Suitable for truck scale, electronic scale, mixing hopper, filling materials scale, etc
  • LSZ-A23
  • SZOBTE
Availability:
Quantity:

Product Description

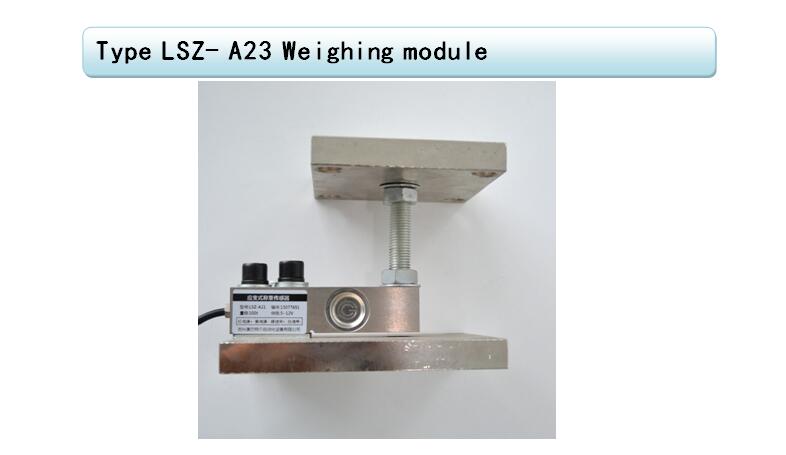

QQ截图20190920124755

  Feature

n  Senior alloy steel

n  Can be directly installed on the ground or base structure

n  Easy to install, stable & reliable

n  An explosion-proof

l  Applications: Suitable for truck scale, electronic scale, mixing hopper, filling materials scale, etc


 Capacities

0-100kg, 200kg, 500kg, 1t, 2t, 5t

 Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-A23/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

Force Direction

QQ截图20191023160809

Note: The information is for reference only. The details are subject to orders
