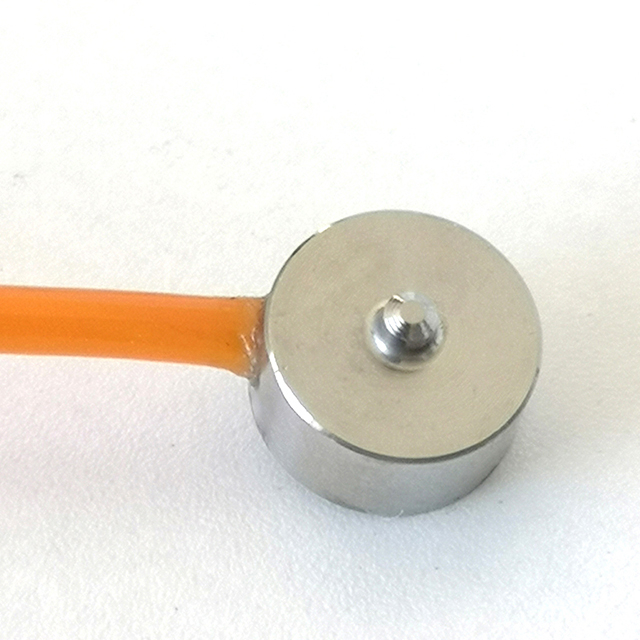

LSZ-C7 high precision miniature load cell

 Senior stainless steel
 Easy to install
 Low height and strong rigidity
 Applications: Suitable for limited space applications
  • LSZ-C7
  • SZOBTE
Availability:
Quantity:

Product Description

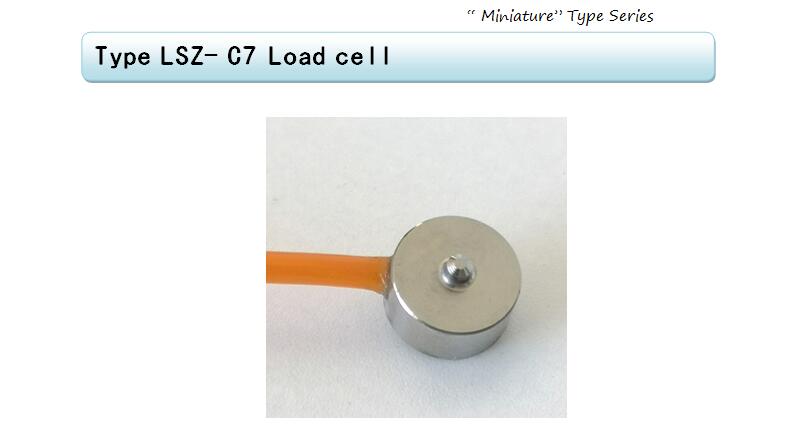

QQ截图20191023161926

  Feature



n  Senior stainless steel

n  Easy to install

n  Low height and strong rigidity

l  Applications: Suitable for limited space applications


 Capacities

0-5kg,10kg,20kg,50kg,100kg,150kg,200kg


 Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.02% of rated output

Nonlinearity

±0.02% of rated output

Hysteresis

±0.02% of rated output

Repeatability

±0.02% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-C7/5kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

Force Direction


QQ截图20191023162133


Note: The information is for reference only. The details are subject to orders
