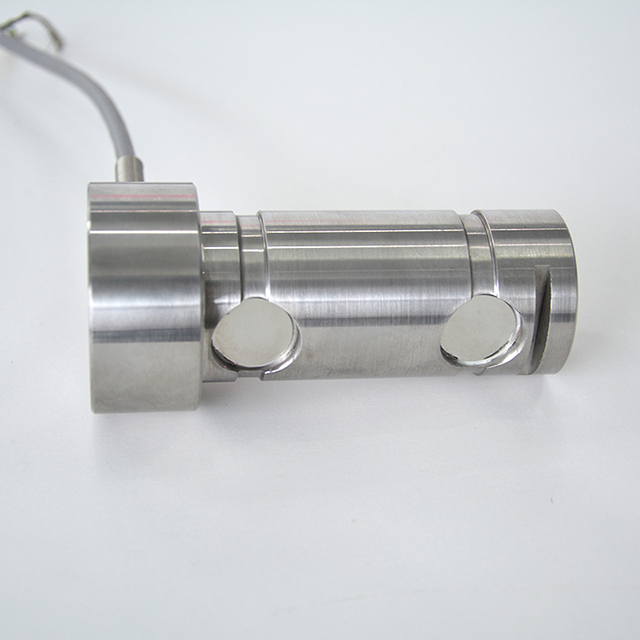

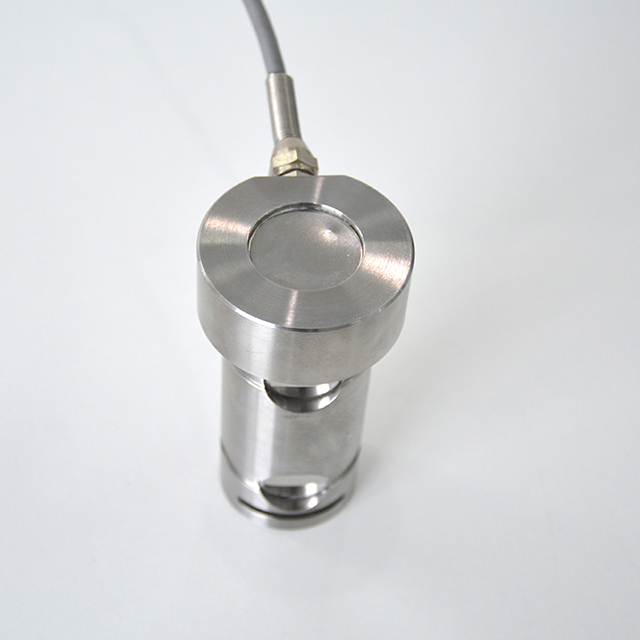

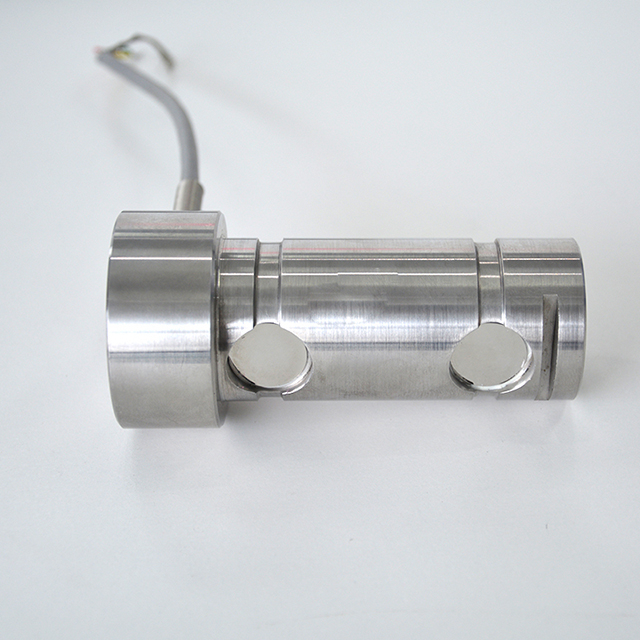

LSZ-D02 Double Ended Beamload Cell

Double ended beemload cell

Senior alloy steel

Structure is simple, safe and reliable

Applications: Apply to port or wharf special scales, and the safety test in hoist or crane equipment
  • LSZ-D02
  • SZOBTE
  • LSZ-D02
Availability:
Quantity:

Product Description

LSZ-D02 Double Ended Beamload Cell


                                                                                       Double ended beem Type Series


 Feature



Double ended beemload cell

Senior alloy steel

Structure is simple, safe and reliable

Applications: Apply to port or wharf special scales, and the safety test in hoist or crane equipment




Capacities

0-5t, 7t, 10t, 15t, 20t

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-D02/5t

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)


 Dimensions



 图片 121



       Size(mm)



CAP(t)

H

E

ΦA

ΦB

C

F

L1

L2

5

240

12

75

60

8

8

204

94

7-15

320

20

105

80

12

10

270

120

20

360

30

125

90

16

12

300

140

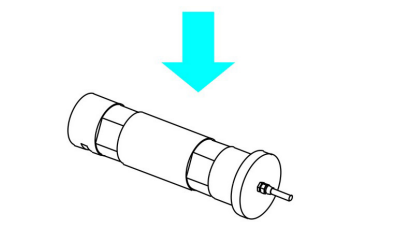

 Force Direction

图片 125



Note: The information is for reference only. The details are subject to orders
