LSZ-F01 Spoke Type Load Cell

Senior alloy steel

Full sealing, laser welding

Higher capacity of overload protection

Applications: Suitable for limited space applications
  • LSZ-F01
  • SZOBTE
  • LSZ-F01
Availability:
Quantity:

Product Description


LSZ-F01 Spoke Type Load Cell

                                                           Spoke Type Series

 Feature



Senior alloy steel

Full sealing, laser welding

Higher capacity of overload protection

Applications: Suitable for limited space applications




Capacities

0-1t, 2.2t, 3.3t, 4.7t, 10t, 15t, 22t, 33t, 47t, 100t,

150t, 220t, 330t, 470t

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F01/10kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

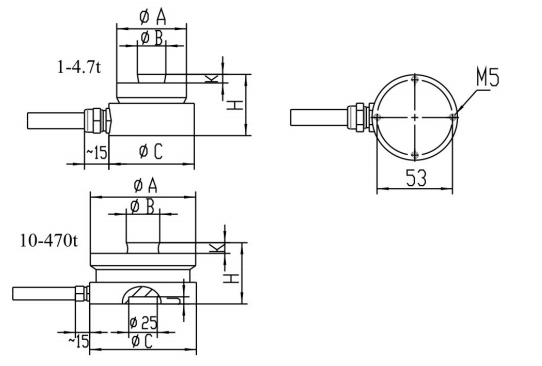

 Dimensions

图片 80

图片 81

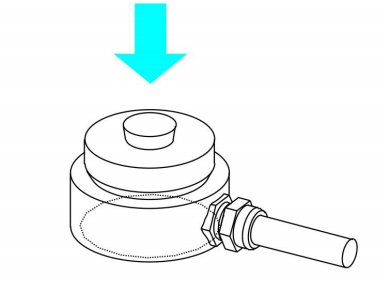

Force Direction


图片 82












Note: The information is for reference only. The details are subject to orders
