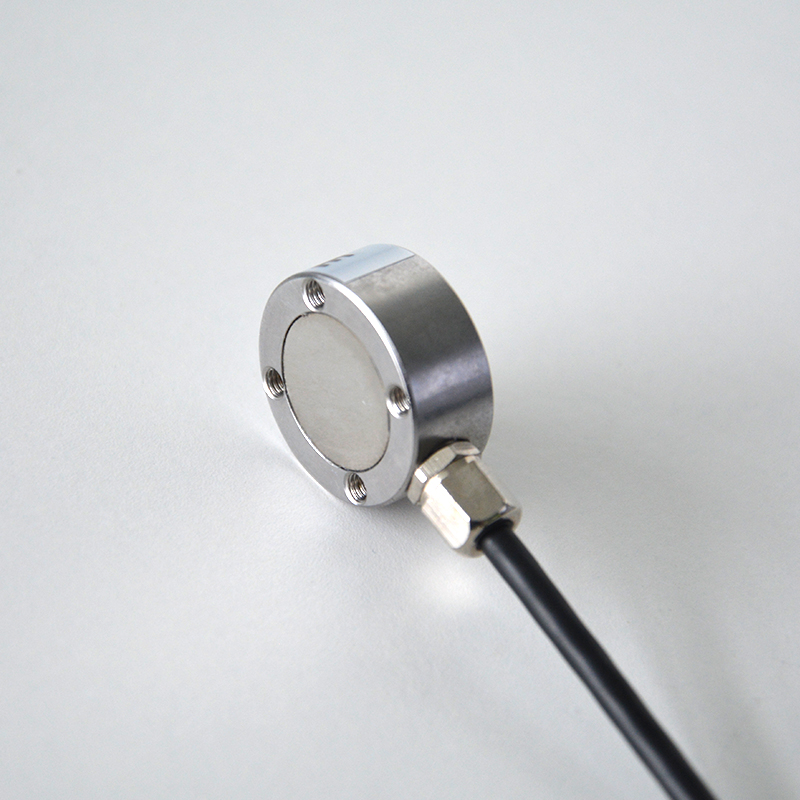

LSZ-F02A Canister Load Cell

Canister load cell
Senior stainless steel
Easy to install
Low height and strong rigidity
Applications: Suitable for measuring occasions with limited space
  • LSZ-F02A
  • SZOBTE
  • LSZ-F02A
Availability:
Quantity:

Product Description

LSZ-F02A Canister Load Cell


                                                                                                                                                                                          “ Miniature” Type Series

 Feature



Canister load cell

Senior stainless steel

Easy to install

Low height and strong rigidity

Applications: Suitable for measuring occasions with limited space



Capacities



0-3kg,5kg,10kg,20kg

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.05% of rated output

Hysteresis

±0.05% of rated output

Repeatability

±0.05% of rated output

Temp. effect on output

0.03% of applied output/

Temp. Effect on zero

0.03% of rated output/

Safe temp. Range

-10℃ to+70

Temp.Compensated

-10to+40℃

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-5t(3.5m);10t(6m)

type

LSZ-F02/3kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

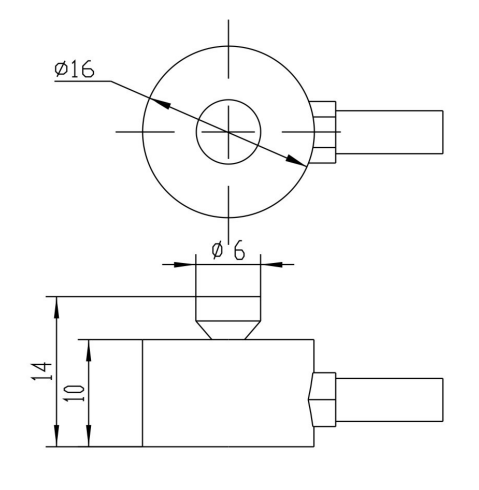

 Dimensions

图片 15

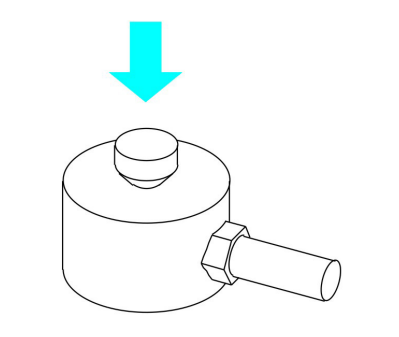

Force Direction

 图片 14










Note: The information is for reference only. The details are subject to orders
