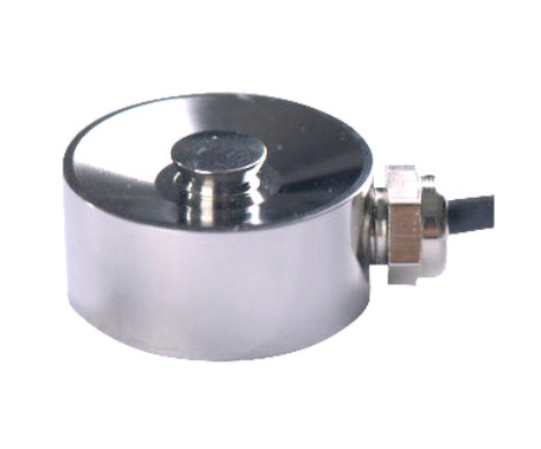

LSZ-F02D Canister Load Cell

Canister load cell

Senior stainless steel

Full sealing, laser welding

Higher capacity of overload protection
  • LSZ-F02D
  • SZOBTE
  • LSZ-F02D
Availability:
Quantity:

Product Description

LSZ-F02 Canister Load Cell                                                                                                                                                                                                              Miniature” Type Series





 Feature



Canister load cell

Senior stainless steel

Full sealing, laser welding

Higher capacity of overload protection



Capacities

0-5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 500kg,1t

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F02D/5kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

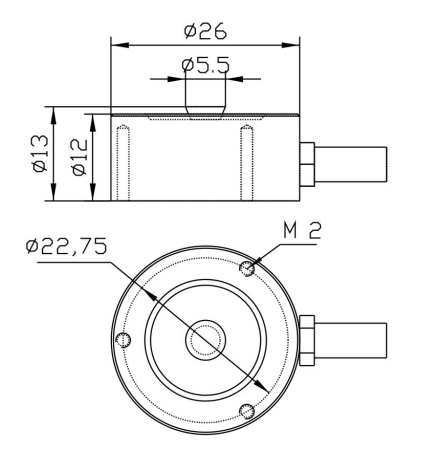

 Dimensions





图片 20

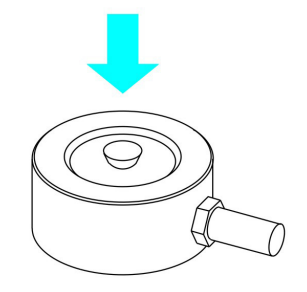

Force Direction



图片 21









Note: The information is for reference only. The details are subject to orders
