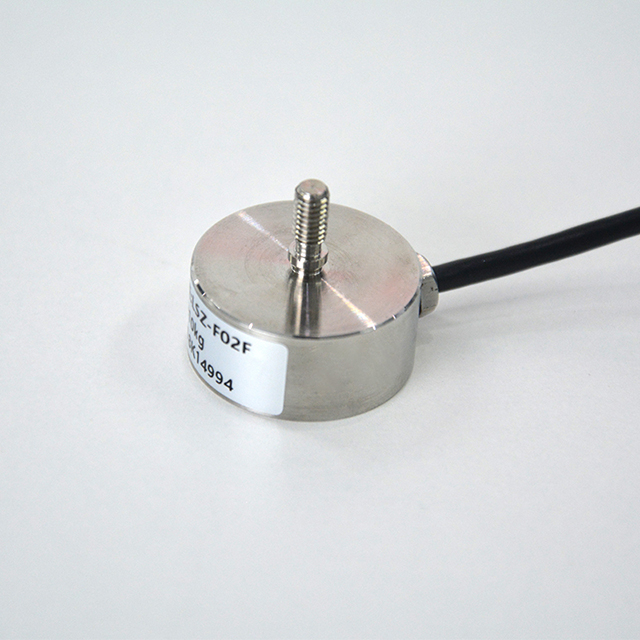

LSZ-F02F Load Cell

 Canister load cell
 Senior stainless steel
 Full sealing
 Higher capacity of overload protection
  • OT_F02F

  • SZOBTE

Availability:
Quantity:

Product Description

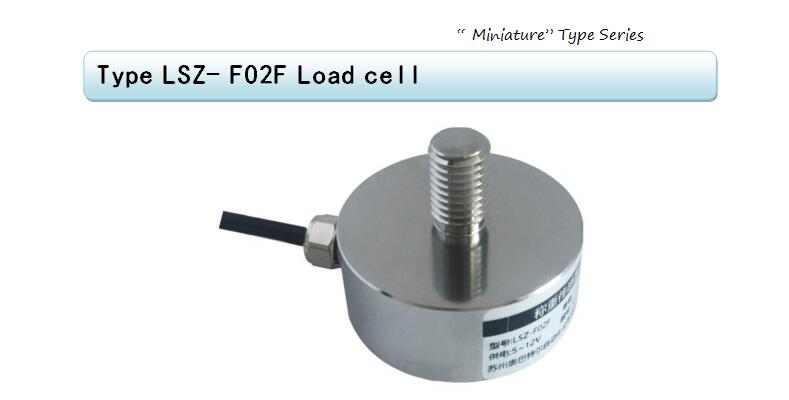

QQ截图20191021155818

  Feature



n  Canister load cell

n  Senior stainless steel

n  Full sealing

n  Higher capacity of overload protection

Capacities

0-5kg,10kg,20kg,30kg,50kg,100kg,200kg,300kg,500kg

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.03% of applied output/

Temp. Effect on zero

0.03% of rated output/

Safe temp. Range

-20 to+70

Temp.Compensated

-10 to+30

Safe Overload

150%

Input Impedance

365 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F02F/5kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

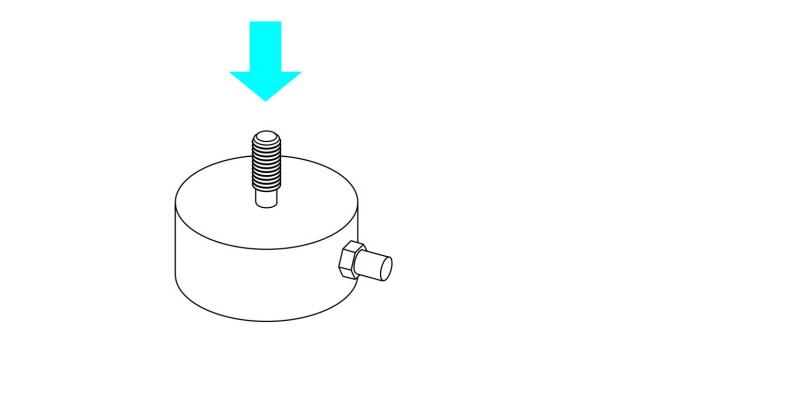

Force Direction

QQ截图20191021160312

Note: The information is for reference only. The details are subject to orders
