LSZ-F02FC Load Cell

Miniature load cell
Capacities

0-10kg,20kg,50kg,100kg,200kg,500kg,1t.
  • LSZ-F02FC
  • SZOBTE
Availability:
Quantity:

Product Description

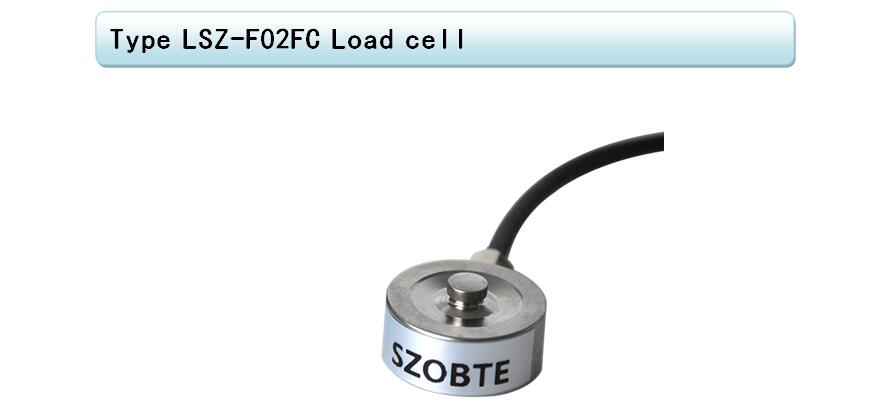

QQ截图20191022113305

Capacities

0-10kg,20kg,50kg,100kg,200kg,500kg,1t.

Specification

Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Construction

Stainless steel

Protection Class

IP65

Construction

2m

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)




Note: The information is for reference only. The details are subject to orders
