LSZ-F03 Spoke Type Load Cell

Senior alloy steel

Low height, good rigidity, strong side force resistance

Applications: Apply to platform scales, car weighter, measurement and control of warehouse
  • LSZ-F03
  • SZOBTE
  • LSZ-F03
Availability:
Quantity:

Product Description

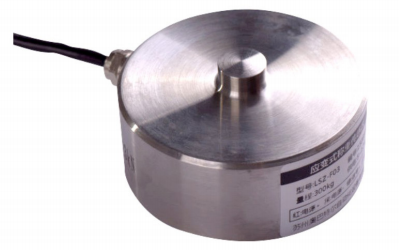

LSZ-F03 Spoke Type Load Cell

                                                          Spoke Type Series

 Feature



Senior alloy steel

Low height, good rigidity, strong side force resistance

Applications: Apply to platform scales, car weighter, measurement and control of warehouse




Capacities

0.2-30t

Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-5t(3.5m);10t(6m)

type

LSZ-F03/0.2t

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)















图片 77_2

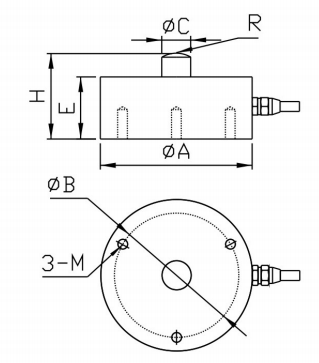

Dimensions





















      Size(mm)



CAP(t)

ΦA

ΦB

ΦC

H

E

M

R

0.3~1

78

64

15

40

32

M6

40

2~10

82

66

22

44

32

M8

50

15~30

127

90

25

70

62

M10

60






Note: The information is for reference only. The details are subject to orders
