LSZ-F04 Spoke Type Load Cell

Senior alloy steel

Low height, strong side force resistance

Applications: Suitable for testing machine, industrial weighing systems, truck scales and big bin & hopper scales, etc
  • LSZ-F04
  • SZOBTE
  • LSZ-F04
Availability:
Quantity:

Product Description

LSZ-F04 Spoke Type Load Cell                                                                                                                                                                                                                                                                                                                                                                                              “ Spoke” Type Series


 Feature





Senior alloy steel

Low height, strong side force resistance

Applications: Suitable for testing machine, industrial weighing systems, truck scales and big bin & hopper scales, etc

Capacities

0-500kg, 1t, 2t, 3t, 5t, 7t, 10t, 20t, 50t, 100t

Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F04/500kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)




Dimensions

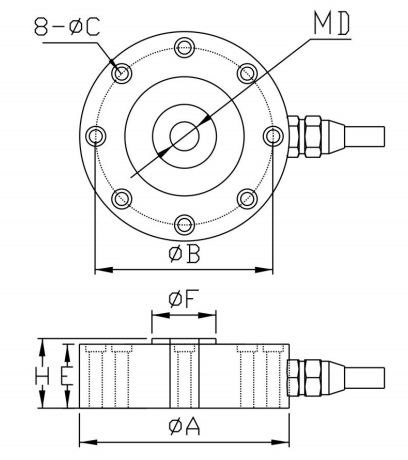

图片 85




      Size(mm)



CAP(t)

ΦA

ΦB

ΦC

ΦF

MD

H

E

0-7

105

88.9

6.5

32

M16x1.5

37

34

10-25

125

101.6

8.5

39

M32x1.5

52

48

30-50

145

116.8

10.5

50

M40x1.5

58

54

60-100

205

162

12.5

80

M60x2

85

78




 Force Direction

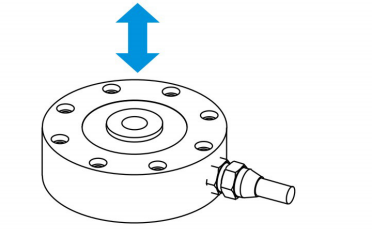

图片 10









Note: The information is for reference only. The details are subject to orders
