LSZ-F05 Load cell

 Spoke type load cell
 Senior alloy steel
 Easy to install
 Applications: Apply to batching scales, button tester, large-tonnage hopper scales
  • LSZ-F05
  • SZOBTE
Availability:
Quantity:

Product Description

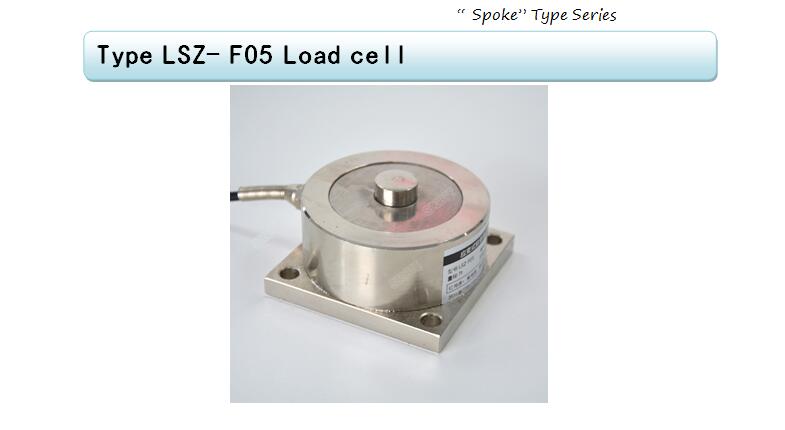

QQ截图20191024111737

  Feature



n  Spoke type load cell

n  Senior alloy steel

n  Easy to install

l  Applications: Apply to batching scales, button tester, large-tonnage hopper scales



 Capacities

0-300kg, 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F05/300kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

Force Direction


QQ截图20191024111902

Note: The information is for reference only. The details are subject to orders
