LSZ-F07 Pancake Load Cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to measure the pedal force in the car development industry

  • LSZ-F07
  • SZOBTE
  • LSZ-F07
Availability:
Quantity:

Product Description

LSZ-F07 Pancake Load Cell

                                                                                                  Pancake Type Series



 Feature



Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to measure the pedal force in the car development industry


Capacities

500N,  1000N, 1500N, 2000N

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.03% of applied output/

Temp. Effect on zero

0.03% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-5t(3.5m); 10t(6m)

type

LSZ-F07/500N

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)


 Dimensions

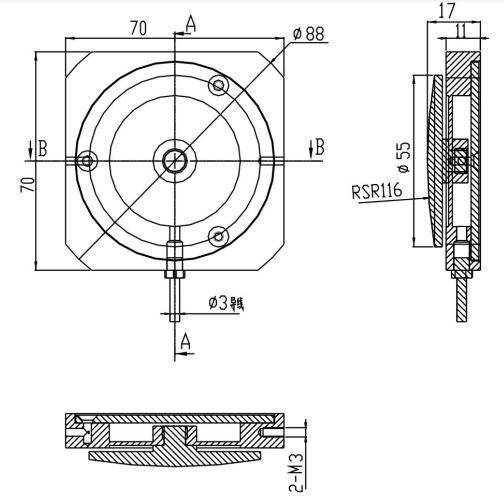

图片 103



 Force Direction


图片 104









Note: The information is for reference only. The details are subject to orders
