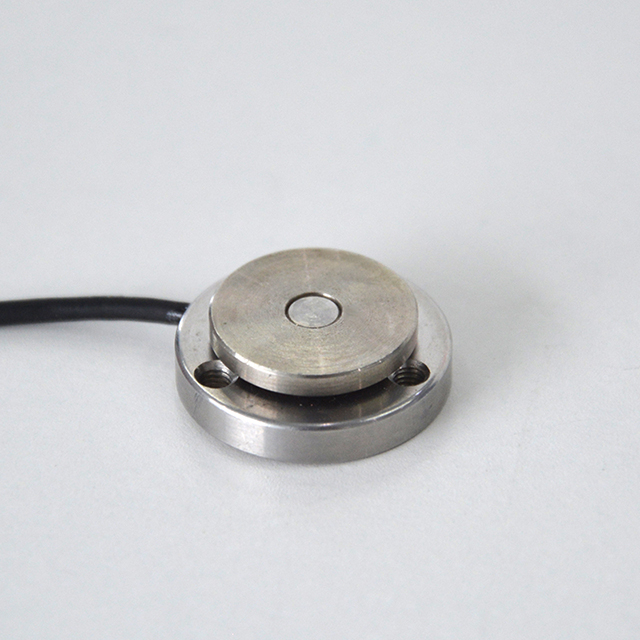

LSZ-F08 Miniature load cell

 Mini-design, easy to install and use
 Made of stainless steel, size and capacity could be customized
 Applications: Force measurement in small space installation, such as feeling tester for keyboard switch, compression fore measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
  • LSZ-F08

  • SZOBTE

Availability:
Quantity:

Product Description

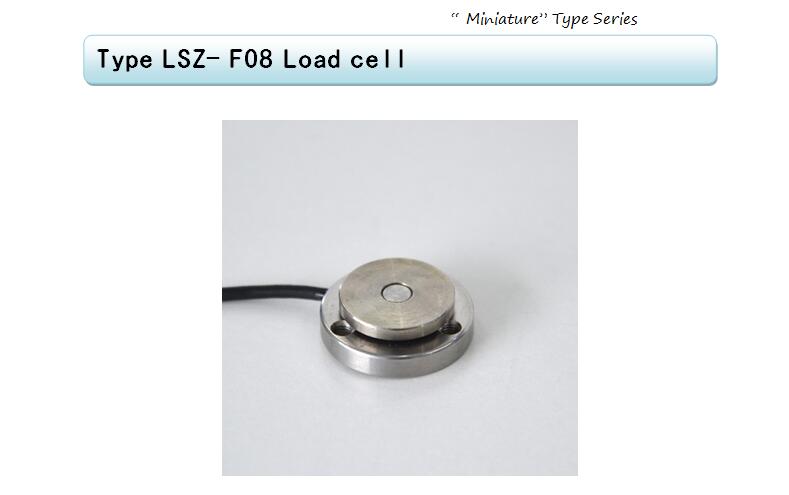

QQ截图20191021144818

  Feature



n  Mini-design, easy to install and use

n  Made of stainless steel, size and capacity could be customized

l  Applications: Force measurement in small space installation, such as feeling tester for keyboard switch, compression fore measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

Capacities

0-10kg,20kg,30kg,50kg



  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F08/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

Force Direction

QQ截图20191021150357

Note: The information is for reference only. The details are subject to orders
