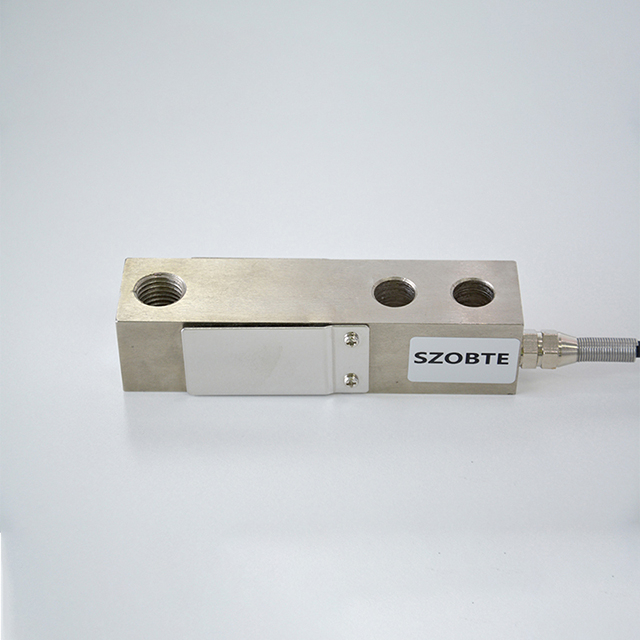

LSZ-S03G

Availability:
Quantity:

Product Description

Features

Senior alloy steel

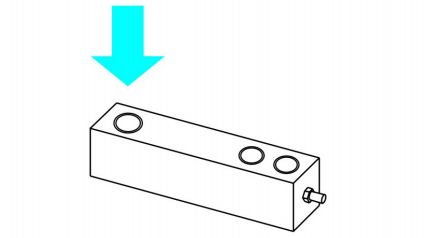

Easy to install, stable &  low center of gravity, good interchangeability. One end fixed, one end of the load.

Applications: Apply to car weighter, electronic scales, hopper scales

 Capacities

0-100kg,  200kg, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t

Specification


Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-5t(3.5m); 10t(6m)

type

LSZ-S03G/500N

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)


Note: The information is for reference only. The details are subject to orders
