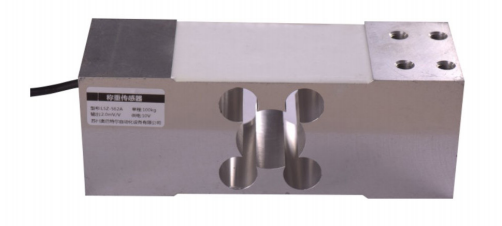

LSZ-S62 Single Point Load Cell

Single point load cell

Senior aluminum

High accuracy

High stability

Easy to install

Applications: Suitable for belt scales,package systems, small hopper scales, bench scales, etc
  • LSZ-S62
  • SZOBTE
  • LSZ-S62
Availability:
Quantity:

Product Description

LSZ-S62 Single Point Load Cell


                                                           Single point Type Series

 Feature



Single point load cell

Senior aluminum

High accuracy

High stability

Easy to install

Applications: Suitable for belt scales,package systems, small hopper scales, bench scales, etc


Capacities

0-60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg

Specification



Rated Output

1.0-2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

450Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

  150mm

type

LSZ-S62/60kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

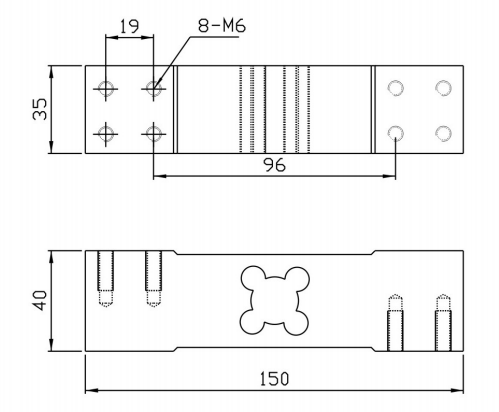

 Dimensions

图片 85

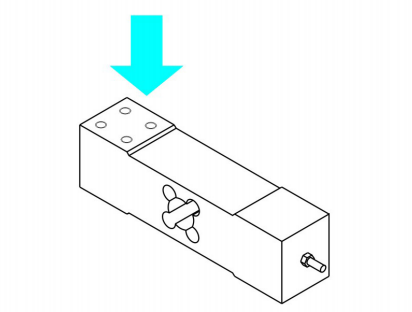

Force Direction


 图片 86









Note: The information is for reference only. The details are subject to orders
