LSZ-XB1 Single Ended Shear Beam Load Cell

Single ended shear beem load cell

Senior alloy steel

n Protected against corrosion by nickel-plafed

l Applications: suitable for floor scales, blending & mixing systems and batching systems, etc
  • LSZ-XB1
  • SZOBTE
  • LSZ-XB1
Availability:
Quantity:

Product Description

LSZ-XB1 Single Ended Shear Beam Load Cell                                                                                                                                                                                                 beem” Type Series

 Feature



Single ended shear beem load cell

Senior alloy steel

Protected against corrosion by nickel-plafed

Applications: suitable for floor scales, blending & mixing systems and batching systems, etc






Capacities

0-500kg,  1000kg, 2000kg, 3000kg, 5000kg, 10t, 20t

Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-XB1/20kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

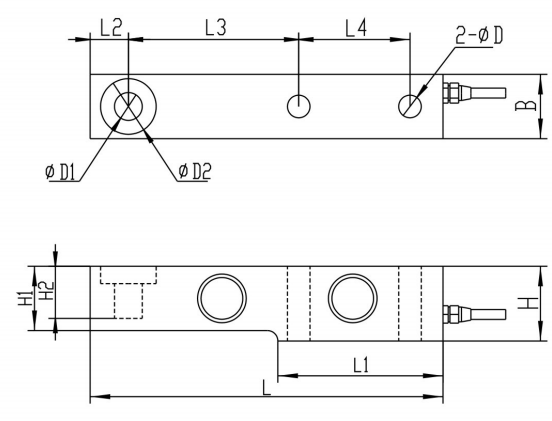

 Dimensions



图片 105

           Size(mm)



CAP(kg)

L

L1

L2

L3

L4

ΦD

ΦD1

ΦD2

H

H1

H2

B

500~3000

203

95

22

98

64

13

16

32

43

37

30

37

5000

235

110

22

124

66

21

22

38

52

48

30

48

10000

279

133

32

140

82

28

32

48

67

60

20

60

20000

318

153

38

159

89

34

38

54

82

70

24

70

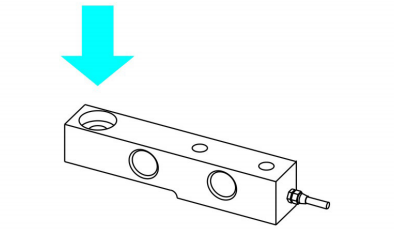

Force Direction

图片 111









Note: The information is for reference only. The details are subject to orders
