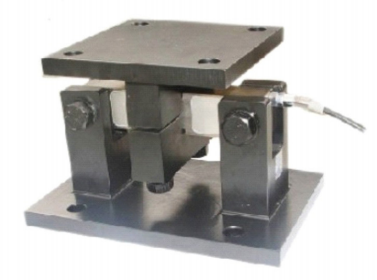

MDA24 Weighing Module

Senior alloy steel

Weighing module

Easy to install, stable & reliable

Applications: Suitable for truck scale, electronic scale, storage and other filling materials industry
  • MDA24

  • SZOBTE

  • MDA24

Availability:
Quantity:

Product Description

MDA24 Weighing Module



  Feature

Senior alloy steel

Weighing module

Easy to install, stable & reliable

Applications: Suitable for truck scale, electronic scale, storage and other filling materials industry



Capacities

1t, 2t, 5t , 7.5t, 10t, 15t, 20t, 30t, 50t

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-MDA24/1t

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)










图片 147

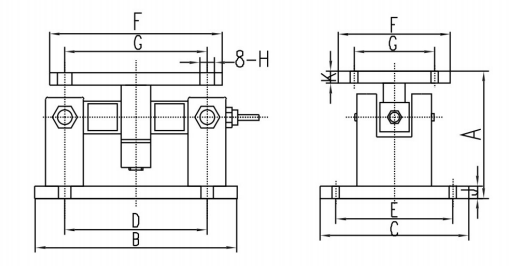

 Dimensions
















       Size(mm)



CAP(t)

A

B

C

D

E

F

G

H

J

K

0~2t

130

237

127

158

92

102

70

14

23

12.7

5~15t

200

305

202

190.5

152

202

152

21

19

19

20~30t

236

410

305

292

240

230

165

21

25

25

35~50t

298

596

356

508

305

254

203

28

38

38

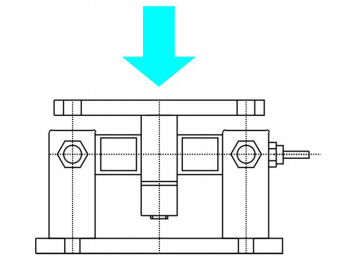

Force Direction



 图片 148

Note: The information is for reference only. The details are subject to orders
