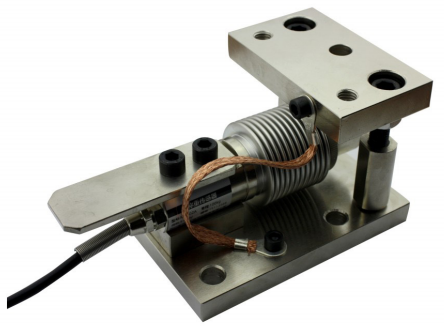

MDS02A Weighing Module

Weighing module

Easy to install, stable & reliable

Applications: Can be used in harsh environments, such as wet or corrosive conditions
  • MDS02A
  • SZOBTE
  • MDS02A
Availability:
Quantity:

Product Description

MDS02A  Weighing Module


Feature

Weighing module

Easy to install, stable & reliable

Applications: Can be used in harsh environments, such as wet or corrosive conditions





Capacities

0-10kg, 20kg, 50kg , 100kg, 200kg, 300kg,500kg

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-MDS02A/10kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

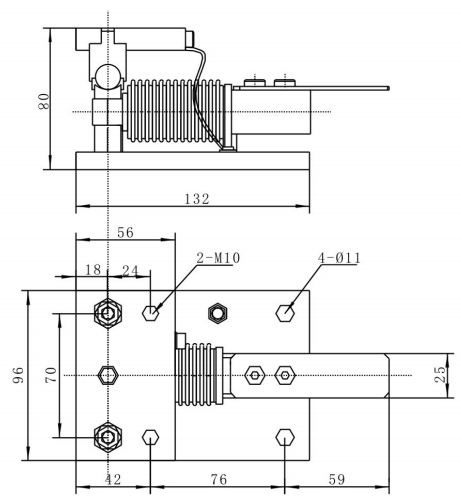

Dimensions

图片 151







Force Direction


图片 152









Note: The information is for reference only. The details are subject to orders
