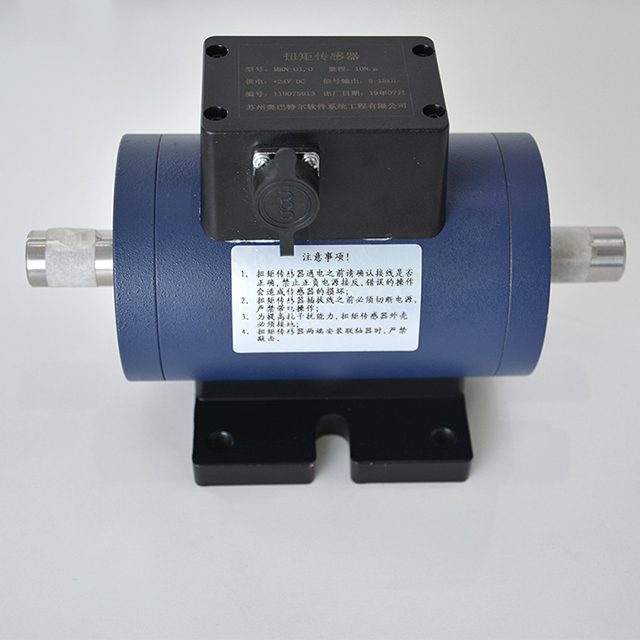

MRN-01 Torque sensor

MRN-01 used for measure torque value. Since the output is square wave frequency signal (another module can be added to output 4-20ma current signal or voltage signal), strong anti-interference ability and easy to use. Sensor is transformer induction power supplied, can bear long time working, widely used in measurement of speed and torque of motor, generator, draught fan, aircraft, mine industry, reducer, ship, diesel engine.
Availability:
Quantity:

Product Description

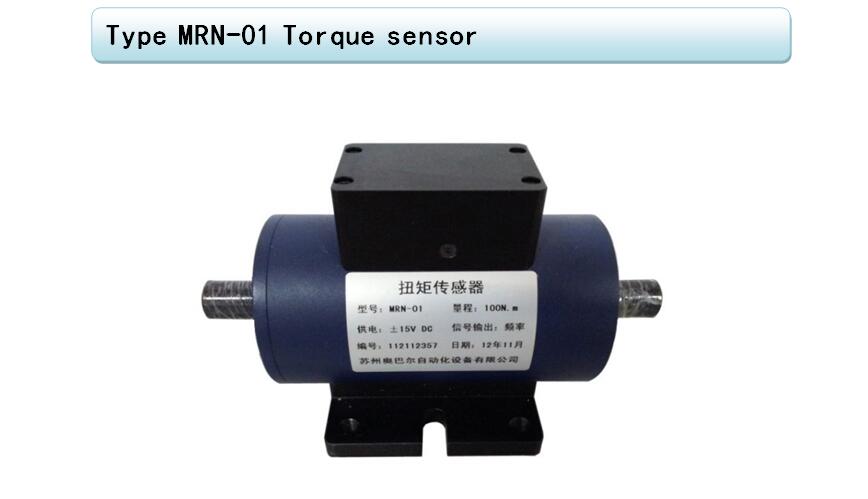

QQ截图20191021165815

  Feature



n   Torque measurement

n  Energy and signal non-contact transmission, output signal digitalized ( additional mode required)

n   Is designed for both static and dynamic torque measurement

n  The signal transmission is independent of the measured object rotates or not, no matter of the rotation speed and rotation direction.

n  There is no collecting ring or other ware parts, can undertake long time running in high speed .

n  High precision, good stability, small size, light weight and easy to install

n  Positive and negative torque signals can be continuously transmitted without repeated zero cleaning

n  Strong anti-interference performance

n  It can be installed in any position and any direction

Product instruction

MRN-01 used for measure torque value. Since the output is square wave frequency signal (another module can be added to output 4-20ma current signal or voltage signal), strong anti-interference ability and easy to use. Sensor is transformer induction power supplied, can bear long time working, widely used in measurement of speed and torque of motor, generator,  draught fan, aircraft, mine industry, reducer, ship, diesel engine.

Principle of operations

       Measure : The input shaft and output shaft are connected by a torsion bar, with splines on the input shaft and keyways on the output shaft. When the torsion bar is twisted by the torque of the steering wheel, the relative position between the spline on the input shaft and the keyway on the output shaft is changed. The relative displacement of splines and keyways is equal to the amount of torsion of the torsion bar, resulting in a change in the magnetic intensity of the spline, which is converted into a voltage signal through the coil. The high frequency part of the signal is filtered by the detection circuit, and only the torque signal part is amplified. Non-contact torque sensor adopts non-contact working mode, so it has a long life, high reliability, and is not easy to be attrited. With less delay, less affected by axial deflection and axial deviation, it is now widely used in cars and light vehicles.

Instrument parameters

Capacity

0~±5Nm0~±(10,20,50,100,500Nm

0~±(1000,2000,5000,10000,20000Nm

Accuracy

±0.5%F·S±0.3% F·S±0.1%F·S、(selectable

Frequency response

100μs

Nonlinearity

<±0.2%F·S

Repeatability

<±0.1% F·S

Hysteresis

<0.1% F·S

Temp. effect on output

<0.2% F·S

Temp. Effect on zero

<0.2% F·S/10

Output impedance

350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(selectable)

Insulation impedance

>500Ω

Static overload

120% 150% 200%(selectable)

Safe temp. range

-10℃~50℃

Storage temp.

-20~70

Power supply

±15V±5%

Power consumption

<200mA

Frequency signal output

5kHz-15kHz

Rated torque

10kHz±5kHz

Connection methods

Torque sensor connect with power equipment and load equipment

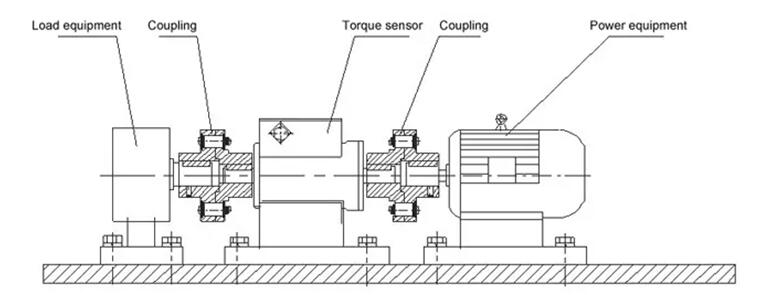

(1) Elastic pin coupling connection: This connection method is simple structure, easy manufacture and maintain.  It can compensate the relative deviation of shaft caused by installation error, it also has slight damping effect. Suitable for high or low speed operation with moderate load and frequent start-up, working temperature -20~60.

QQ截图20191021170153

(2) Rigid coupling connection: This kind of connection has the advantages of simple structure, low cost, but no compensation, no damping and the two shafts ask for high installation accuracy.  For working conditions with little vibration.

Installation

1.    The horizon installation

QQ截图20191021170307

2.    Vertical installation

QQ截图20191021170405

Note: The information is for reference only. The details are subject to orders
