MRN-H01 Dynamic Slip Ring Torque Sensor

Resistance strain is one of the products with high precision, stable and reliable. Performance, which is composed of sensitive components and integrated circuits

It doesn’t wear parts such as high-speed collecting ring, long time operation, reverse torque signal output.

The ends are the highest bond connection speed of not more than 4000rpm
  • MRN-H01
  • SZOBTE
  • MRN-H01
Availability:
Quantity:

Product Description

MRN-H01 Dynamic Slip Ring Torque Sensor



  Feature

Resistance strain is one of the products with high precision, stable and reliable. Performance, which is composed of sensitive components and integrated circuits

It doesnt wear parts such as high-speed collecting ring, long time operation, reverse torque signal output.

The ends are the highest bond connection speed of not more than 4000rpm



Capacities

0~±(0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5) Nm

Specification



Rated Output

1.0~2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

2000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

MRN-H01/1N.m

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

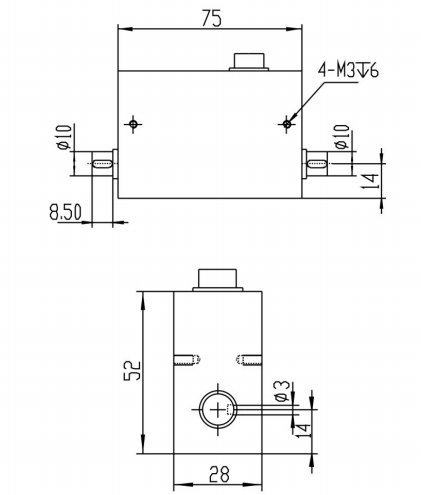

Dimensions

图片 152

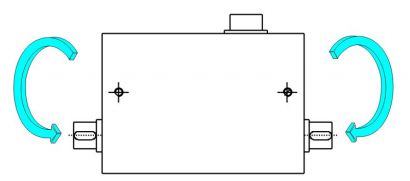

 Force Direction







图片 153







Note: The information is for reference only. The details are subject to orders
