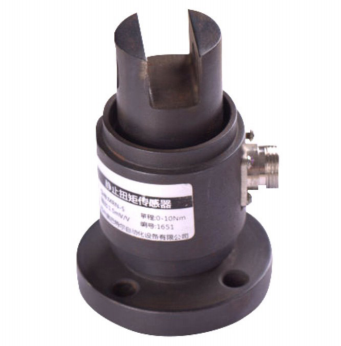

MRN-S02 Static Torque Sensor

Apply to static, non-continuous rotation of the torque force values measured
  • MRN-S02
  • SZOBTE
  • MRN-S02
Availability:
Quantity:

Product Description

MRN-S02 Static Torque Sensor




 Feature

Apply to static, non-continuous rotation of the torque force values measured


Capacities

0~±(1, 2, 5, 10, 20, 50, 100, 200,300,500) Nm

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.1% of rated output

Hysteresis

±0.2% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.2% of applied output/

Temp. Effect on zero

0.3% of rated output/

Safe temp. Range

-20to+65

Temp.Compensated

-10to+20

Safe Overload

150%

Input Impedance

750 Ω±30Ω

Output Impedance

700 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65/IP67

Construction

2m

type

MRN-S02/10kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

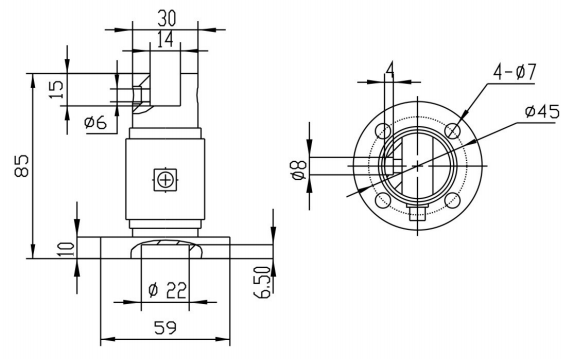

 Dimensions

图片 166

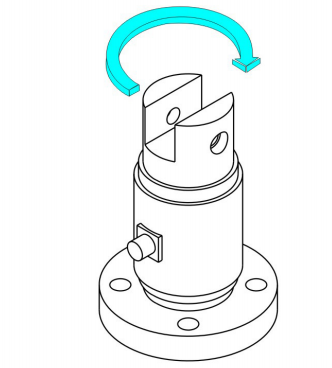

Force Direction


图片 167









Note: The information is for reference only. The details are subject to orders
