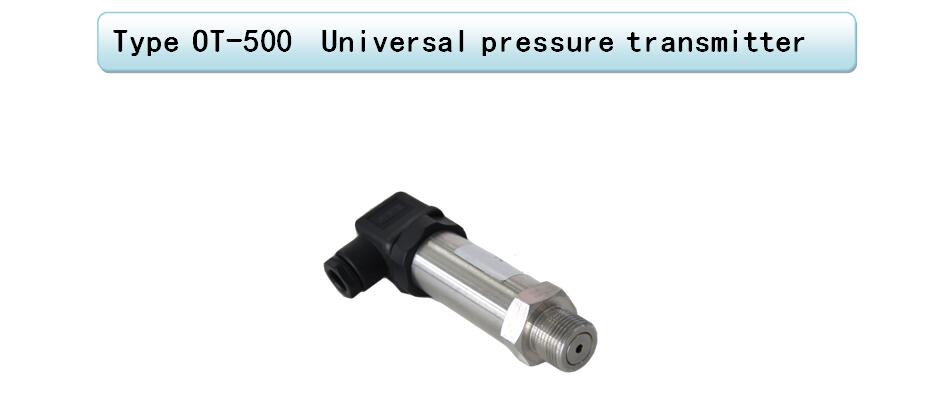

OT-500 Universal pressure transmitter

OT-500 series universal pressure transmitter, the nozzle is made of stainless steel, with strong corrosion resistance and long-term stability. In a wide temperature range, the temperature compensation is carried out to ensure the technical index of the sensor.
Can be customized for a variety of thread interface and wiring mode, can meet customer needs as much as possible. LED or LCD field display module, RS485 board or HART protocol board are selectable. Could also select various measure and control instruments which developed and produced by our company.
  • OT-500
  • SZOBTE
Availability:
Quantity:

Product Description

QQ截图20191021152640

 Feature



n   Stainless steel, impact size

n  High sensitivity

n  Application: Hydraulic pressure, die casting, central air conditioning system, constant pressure water supply, locomotive braking system, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems

Introductions

OT-500 series universal pressure transmitter, the nozzle is made of stainless steel, with strong corrosion resistance and long-term stability. In a wide temperature range, the temperature compensation is carried out to ensure the technical index of the sensor.

Can customize a variety of thread interface and wiring mode, can meet customer needs as much as possible.  LED or LCD field display module, RS485 board or HART protocol board are selectable.  Could also select various measure and control instruments which developed and produced by our company.

Instrument parameters



Pressure range

-0.1~200MPa

Precision

0.25%FS、 0.5%FS、1.0%FS(selectable)

Power supply

Sensor:+5~12VDC;

 Transmitter:24VDC、+12VDC、5VDC

Output

0/0,5/1.0~4.0/4.5/5.0/10.0V(three-wire system)   4~20mA(two/three wire system)

Load capacity

Current≤500Ω; Voltage≥100kΩ

Zero error

±0.5%FS

Full scale error

  ±1.0%FS

Compensate temp.

-10℃~70℃

Working environment

-20℃~75℃, ≤85%RH

Storage environment

-40℃~85℃, ≤95%RH

Safe overload

150%

Max   overload

250%

Temperature   drift

0.03%FS/

Long-term   stability

≤0.2%FS/Year

External   material

316 stainless   steel




Note: The information is for reference only. The details are subject to orders
