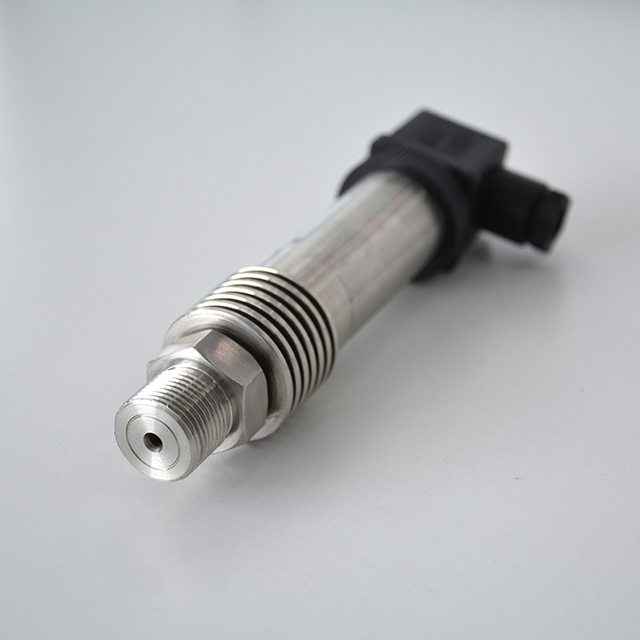

OT-831 Pressure Transmitter

Stainless steel, impact size

High sensitivity

Application: Hydraulic pressure, die casting, central air conditioning system, constant pressure water supply, locomotive braking system, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems
  • OT-831
  • SZOBTE
  • OT-831
Availability:
Quantity:

Product Description

OT-831 Pressure Transmitter


 Feature



Stainless steel, impact size

High sensitivity

Application: Hydraulic pressure, die casting, central air conditioning system, constant pressure water supply, locomotive braking system, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems

Introductions

OT-831  series medium temperature pressure transmitter, the nozzle is made of stainless steel, with strong corrosion resistance and long-term stability.  Easy to install and could be customized.

Instrument parameters



Pressure range

-0.1~100MPa

Precision

0.1%FS、 0.25%FS、0.5%FS、1.0%FS(selectable)

Power supply

Sensor:+3~15VDC;

 Transmitter:24VDC、+12VDC、5VDC

Output

Sensor:1mV/V;

Transmitter0/0,5/1.0~4.0/4.5/5.0/5.0V(three-wire system) 4~20mA(two/three wire system)

Load capacity

Current≤500Ω; Voltage≥100kΩ

Zero error

±0.5%FS

Full scale error

  ±1.0%FS

Compensate temp.

-10℃~70℃

Working environment

-20℃~75℃, ≤85%RH

Storage environment

-40℃~85℃, ≤95%RH

Safe overload

150%

Max overload

250%

Temperature drift

0.03%FS/℃

Long-term stability

≤0.2%FS/Year

External material

316 stainless steel








Note: The information is for reference only. The details are subject to orders
