OT-DT01 Weighing Transmitter

OT-DT01 is a standard guide rail weighing transmitter, which outputs 0-10v analog voltage signal. All calibration functions are completed by 2 keys;Ot-dt01 is also equipped with two LED indicators, through its different flashing state, to achieve a variety of required indicator functions;
  • OT-DT01

  • SZOBTE

Availability:
Quantity:

Product Description

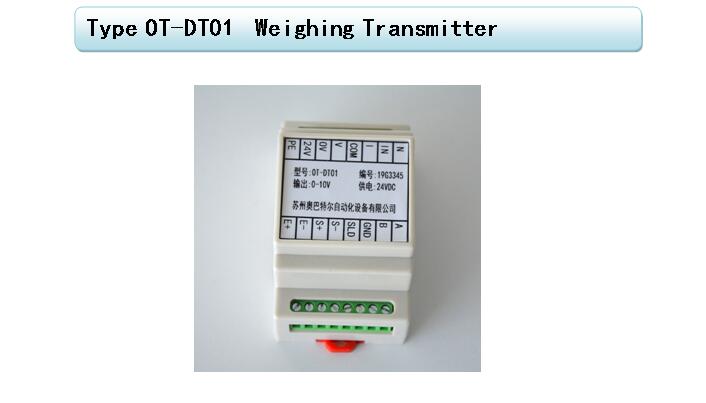

QQ截图20191022163917

Feature



n  24V wide range voltage power supply

n  Weight conversion USES 24 bit Σ-Δ integrated  chips

n  Totally digital conversion,  No potentiometer and other analog regulating parts

n  Two key debugging, zero and full value only need to adjust once.

n  Ultra-wide range of zero point and tare weight;

n  Ultra wide  full capacity signal range -19mV+19mV

n  0 ~ 10V range can be set by pressing the button, no wire jumper is needed

n  Support any weight calibration, zero point and load can be calibrated independently;

n  Innovative filter coefficient setting function ,fully reflects the advantages of digitization

Introduction
   OT-DT01 is a standard guide rail weighing transmitter, which outputs 0-10v analog voltage signal. All calibration functions are completed by 2 keys;Ot-dt01 is also equipped with two LED indicators, through its different flashing state, to achieve a variety of required indicator functions;

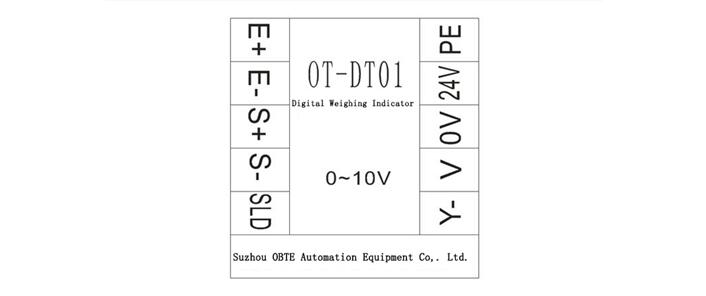

Connection mode

E+ (power supply +) : connect the sensor red line;

E- (power -) : connect the sensor's black wire;

S+ (signal +) : connect the sensor green line;

S- (signal -) : connect the white wire of the sensor;

SLD (shielding) : shielded wire

24V (power supply) : 24V power supply is positive;

0V (ground) : 24V power negative;

V(signal line) :signal output; X+ and X- are signal input end; Y+, Y- is the signal output end;

QQ截图20191022164131

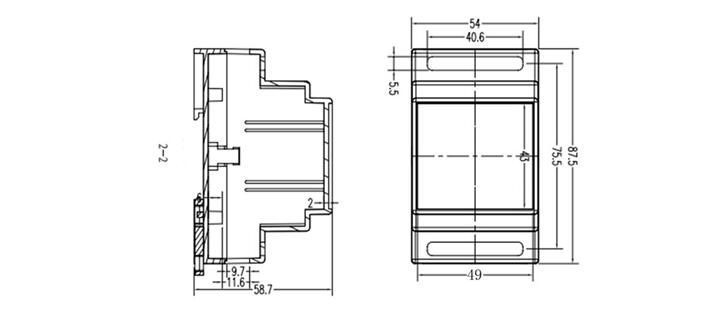

QQ截图20191022164152

Attentions

1: 24VDC power supply, too high voltage  will burn circuit board

2: The red line and the black line of the power cord cannot be connected together

3. The sensor should not work beyond the range

4: If the output signal is negative, reverse the green wire and the white wire



Note: The information is for reference only. The details are subject to orders
