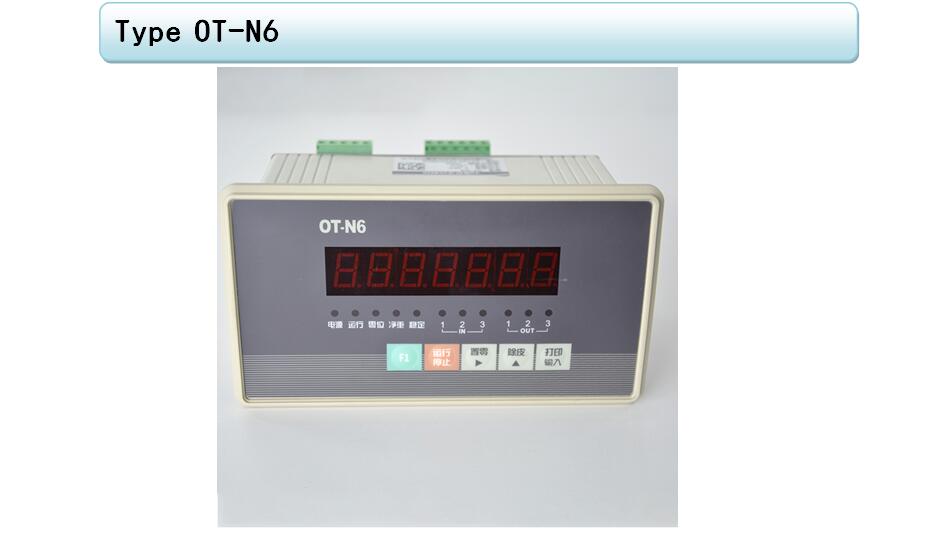

OT-N6 Indicator

OT-N6 Weighing Display Controller adopts MCS-51 single chip microprocessor and high-speed ∑-△A/D conversion technology, the highest conversion speed up to 80 times per second. The display can be conveniently connected with resistance strain sensor to form batching scale , control scale, etc. Suitable for all kinds of high speed and high precision weighing control occasions.
  • OT-N6
  • SZOBTE
Availability:
Quantity:

Product Description

N6

Introduction:

OT-N6 Weighing Display Controller adopts MCS-51 single chip microprocessor and high-speed -A/D conversion technology, the highest conversion speed up to 80 times per second. The display can be conveniently connected with resistance strain sensor to form batching scale , control scale, etc. Suitable for all kinds of high speed and high precision weighing control occasions.

Parameters:

Type

OT-N6 Weighing display   controller

Accuracy

3 classn=3000

Input

- 19mV~ + 19mV

Nonlinear

0.01%F.S

Connect sensor number

1~ 8 units of 350Q sensor

Bridge power

DC: 5V; 350mA

Connection

6 WiresLong wire automatic compensation

Display

Single row 7 bit LEDeach is half an inch high11 status light

Button

 5 touch buttons

Large screen display interface

Serial output mode, 20mA constant current source signal

Communication interface

RS232/RS422/RS485.selectable,bout rate 1200~ 9600 selectable

Relay output

Connection capacity AC: 220V;0.5A

External control input

Switch contact (effective closure control)

Operation power

AC110~ 230V, 50/60Hz 1A

Operation temperature humidity

0~ 40^C;≤90%RH

Storage temperature

-20~ 50'C

External size

shell: 150x76x85mm

panel: 172x93x3mm
