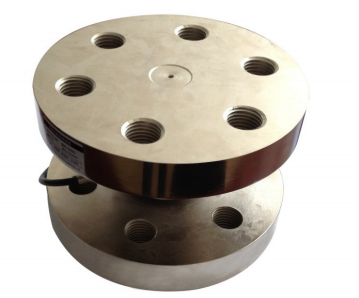

LSZ-A09 Multi-column Load Cell

Multi-column load cell

Senior alloy steel

Easy to install, dynamic performance, with automatic adjustment of the focal point of the function, seal welding, to achieve protection grade IP65

Applications: Apply to car weighter, orbit weighter, large-tonnage hopper scales
  • LSZ-A09
  • SZOBTE
  • LSZ-A09
Availability:
Quantity:

Product Description

LSZ-A09 Multi-column Load Cell

                                                                 Canister Type Series


 Feature



Multi-column load cell

Senior alloy steel

Easy to install, dynamic performance, with automatic adjustment of the focal point of the function, seal welding, to achieve protection grade IP65

Applications: Apply to car weighter, orbit weighter, large-tonnage hopper scales








Capacities

0-1t,3t,5t,10t,15t,20t,25t,30t,40t,50t,100t,200t

Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.02% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

0-15t(3m),35-100t(12m)

type

LSZ-A09/1t

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

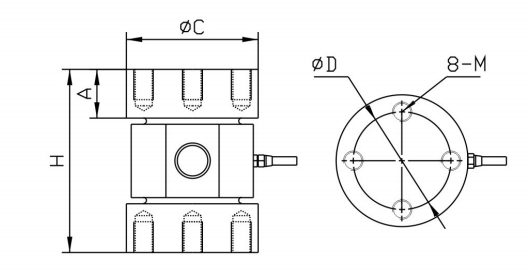

 Dimensions

图片 45








       Size(mm)



CAP(t)

ΦC

H

A

ΦD

M

0~100

108

150

40

80

16

200

190

180

55

140

20

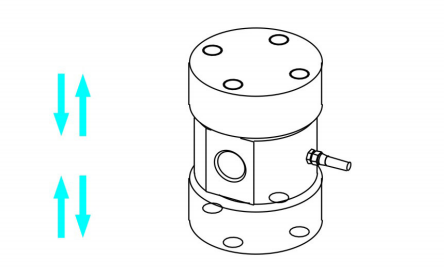

Force Direction


 图片 53





Note: The information is for reference only. The details are subject to orders
