LSZ-S04 Multi-column Load Cell

Multi-column load cell

Senior stainless steel

n Easy to install, stabe & reliable

Can resist lateral force

Applications: Apply to testing machine,batching scales, crane scales, pull and push, button tester and special scales, etc
  • LSZ-S04
  • SZOBTE
  • LSZ-S04
Availability:
Quantity:

Product Description

LSZ-S04 Multi-column Load Cell


                                                          Canister” Type Series











 Feature



Multi-column load cell

Senior stainless steel

Easy to install, stabe & reliable

Can resist lateral force

Applications: Apply to testing machine,batching scales, crane scales, pull and push, button tester and special scales, etc



Capacities

0-100kg

Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10℃ to+70

Temp.Compensated

-10to+30℃

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-S04/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

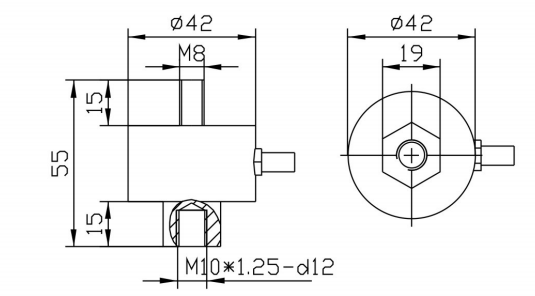

 Dimensions

图片 60

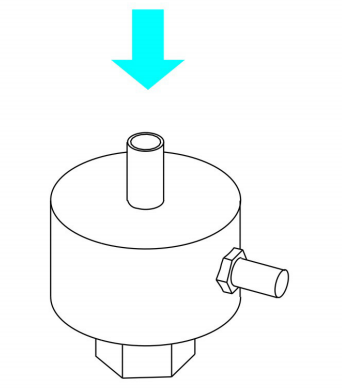

Force Direction


 图片 62









Note: The information is for reference only. The details are subject to orders
