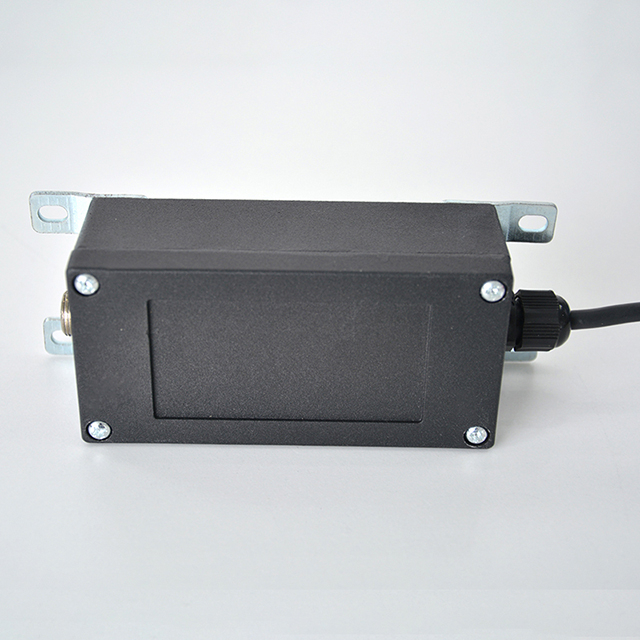

OT-S Amplifier

0T-S is an load cell amplifier which is single channel analog quantity input, single channel 4-20mA or 0-5V、0-10V output. Amplify the weak signal of analog sensor and output, using potentiometer ,could easily adjust the output and magnification coefficient.
  • OT-S
  • SZOBTE
Availability:
Quantity:

Product Description

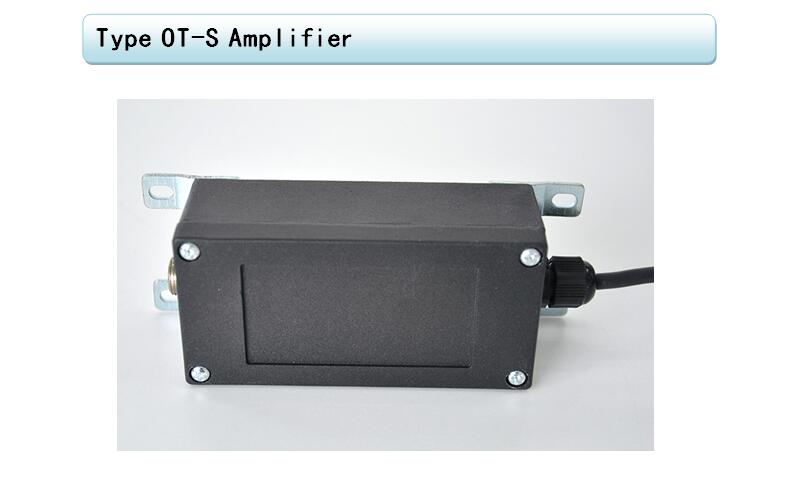

QQ截图20191024145010

Introductions

      0T-S is an load cell amplifier which is single channel analog quantity input, single channel 4-20mA or 0-5V0-10V output.  Amplify the weak signal of analog sensor and output, using potentiometer ,could easily adjust the output and magnification coefficient.

 Specification



Nonlinearity

±0.1%FS

Power supply

15 to 24VDC

Output Signal

4-20mA\0-5VDC\0-10VDC(Singal signal)

Load Cell Excitation Power

5VDC

Operation Temperature

-20 to+60

Storage Temperature

-30 to+70

Zero Temperature Drift

  <±0.1%F.S

Load Resistance

<500Ω

Maximum Input Signal

±19mV

Accurate Class

0.3%-0.5%

Cable Color Code

Red(+E)Yellow(sin+)Green(GND)

Note: The information is for reference only. The details are subject to orders
