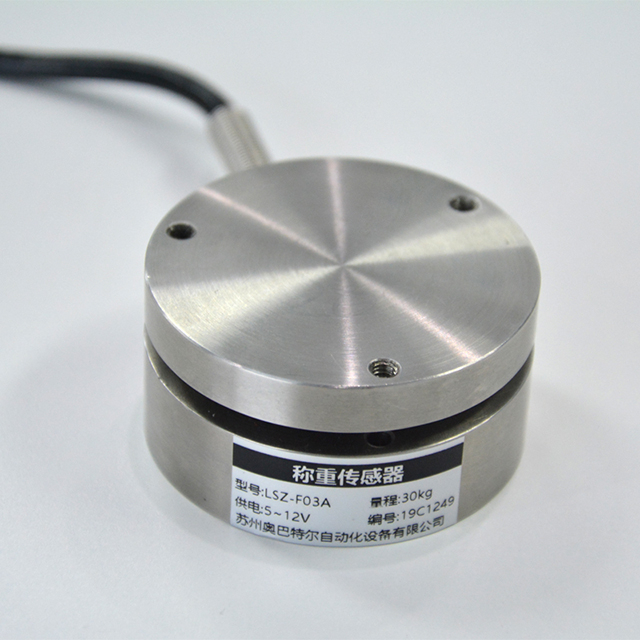

LSZ-F03A Load Cell

 Senior stainless steel
 Flat plane, easy to install, strong side force resistance
 Applications: Apply to platform scales, orbit weighter, measurement and control of warehouse
  • LSZ-F03A

  • SZOBTE

Availability:
Quantity:

Product Description

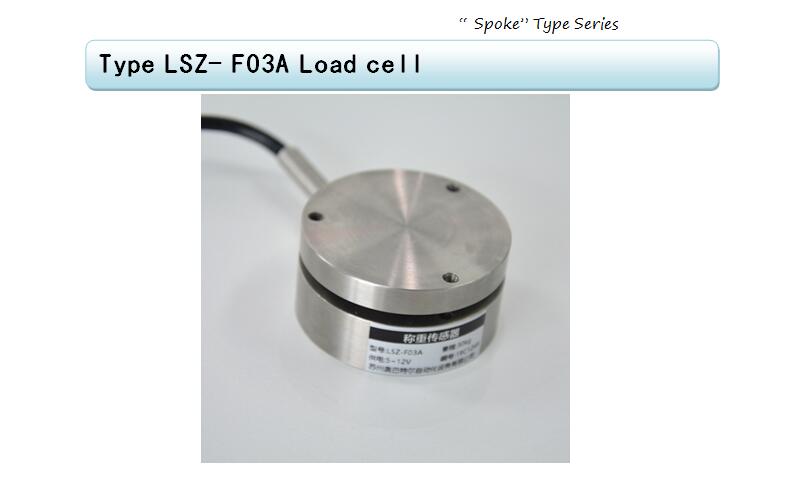

QQ截图20191024102027

 Feature



n  Senior stainless steel

n  Flat plane, easy to install, strong side force resistance

l  Applications: Apply to platform scales, orbit weighter, measurement and control of warehouse



 Capacities

0-30kg, 50kg, 100kg, 200kg, 500kg, 1000kg, 2000kg

  Specification



Rated Output

1.5-2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.02% of rated output

Nonlinearity

±0.02% of rated output

Hysteresis

±0.02% of rated output

Repeatability

±0.02% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F03A/30kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

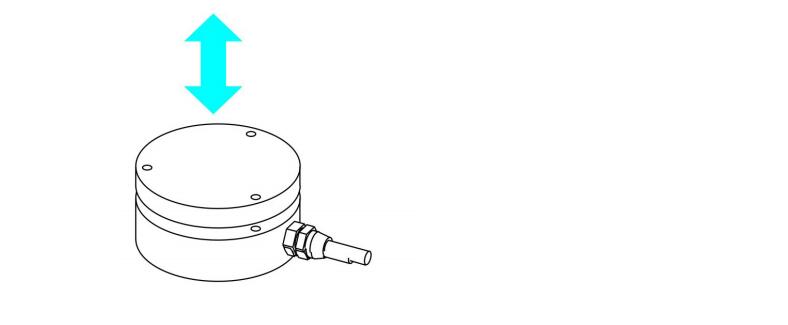

 Force direction

QQ截图20191024102358

Note: The information is for reference only. The details are subject to orders
