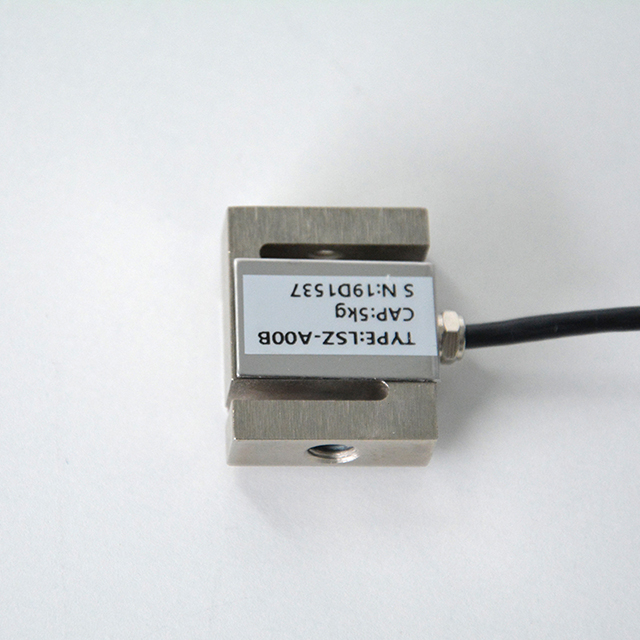

LSZ-A00B S-Type Load Cell

S-Type load cell

Senior alloy steel

Easy to install, stable & reliable

Apply to testing machine, batching scales, crane scales, pull and push, Button Tester and special scales, etc.
  • LSZ-A00B

  • SZOBTE

  • LSZ-A00B

Availability:
Quantity:

Product Description

 LSZ-A00B S-Type Load Cell                                                                    S” Type  Series


 Feature



S-Type  load cell

Senior alloy steel

Easy to install, stable & reliable

Apply to testing machine, batching scales, crane scales, pull and push, Button Tester  and special scales, etc.






Capacities

0-2kg,3kg,5kg,10kg,20kg,30kg,50kg

Specification



Rated Output

1.0~2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.02% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

365 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A00B/2kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

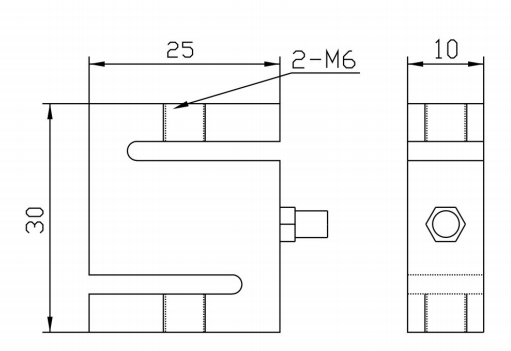

Dimensions





 图片 2






                    Size(mm)

CAP(kg)

A

  B

  C

M

0-10kg

16

  19.1

6

M3

20kg

16

19.1

6

M4

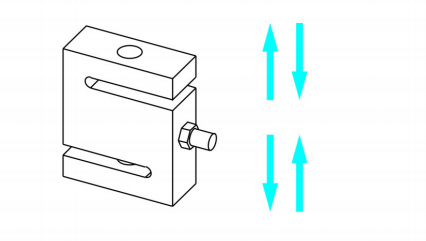

Force Direction



图片 3





Note: The information is for reference only. The details are subject to orders
