LSZ-S02A

Availability:
Quantity:

Product Description

Features

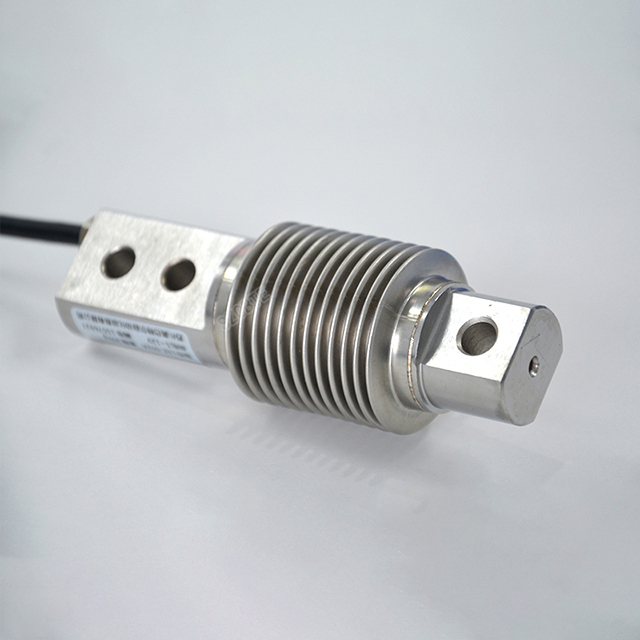

 Single ended shear beam load cell

 Laser welding of stainless steel structure

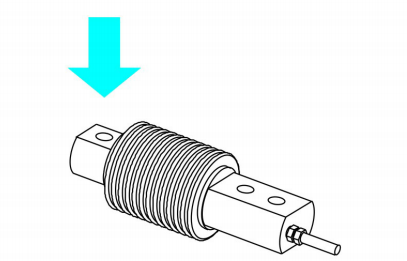

 Anti fatigue, anti eccentric load, can bare tension, pressure of two working modes

 Applications: can be used in harsh environments, such as wet or corrosive conditions

 Capacities

0-10kg,  20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg, 700kg, 1000kg

Specification


Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.005% of applied output/

Temp. Effect on zero

0.005% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-S02/20kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)



Note: The information is for reference only. The details are subject to orders
