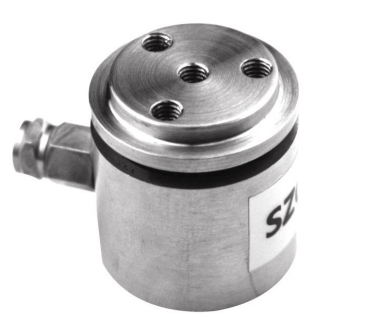

LSZ-A17 Multi-column Load Cell

Multi-column load cell

Senior alloy steel

n Easy to install, stabe & reliable

Can resist lateral force

Applications: Apply to testing machine,batching scales, crane scales, pull and push, button tester and special scales, etc
  • LSZ-A17

  • SZOBTE

  • LSZ-A17

Availability:
Quantity:

Product Description

 LSZ-A17 Multi-column Load Cell                                                     Canister” Type Series


 Feature



Multi-column load cell

Senior alloy steel

Easy to install, stabe & reliable

Can resist lateral force

Applications: Apply to testing machine,batching scales, crane scales, pull and push, button tester and special scales, etc



Capacities

0-5kg,10kg,20kg,30kg,50kg

  Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.02% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A17/50kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

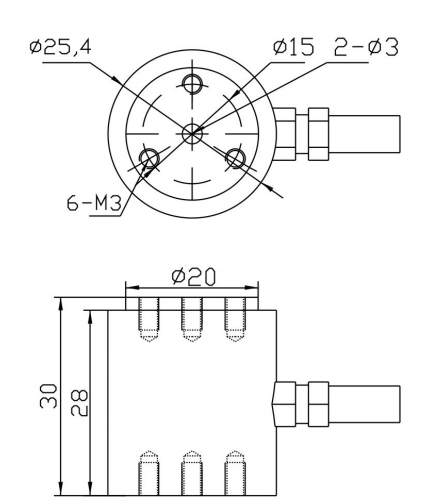

Dimensions


图片 65

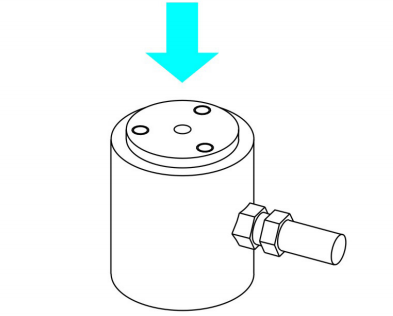

Force Direction



图片 66











Note: The information is for reference only. The details are subject to orders
