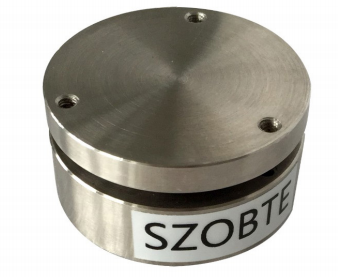

LSZ-F03B Spoke Type Load Cell

Senior stainless steel

Low height, strong side force resistance

Applications: Suitable for testing machine, industrial weighing systems, limited space applications
  • LSZ-F03B

  • SZOBTE

  • LSZ-F03B

Availability:
Quantity:

Product Description

                                                                                                                                                         “ Spoke Type Series

LSZ-F03B Spoke Type Load Cell



  Feature



Senior stainless steel

Low height, strong side force resistance

Applications: Suitable for testing machine, industrial weighing systems, limited space applications





Capacities

0-5kg, 10kg, 20kg, 30kg, 50kg, 100kg

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F03B/5kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

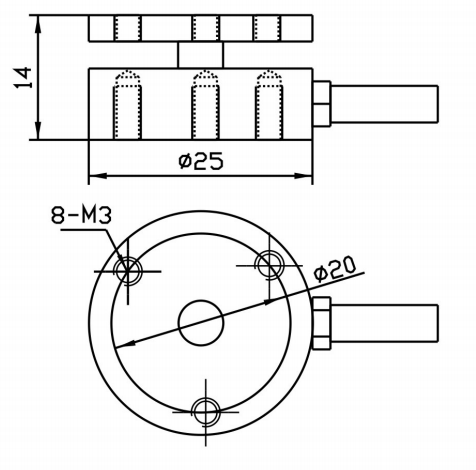

 Dimensions


图片 3

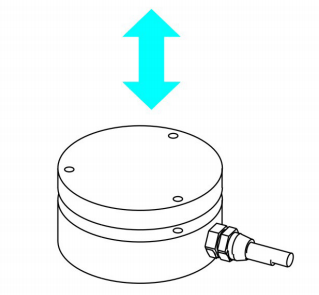

 Force direction

图片 4




Note: The information is for reference only. The details are subject to orders
