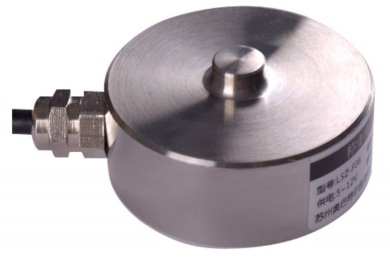

LSZ-F06 Spoke Type Load Cell

Spoke type load cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to batching scales, industrial weighing systems and special scales, etc
  • LSZ-F06

  • SZOBTE

  • LSZ-F06

Availability:
Quantity:

Product Description

LSZ-F06 Spoke Type Load Cell

                                                           Spoke Type Series

  Feature



Spoke type load cell

Senior alloy steel

Easy to install, stable & reliable

Applications: Apply to batching scales, industrial weighing systems and special scales, etc




Capacities

0.5t, 1t, 2t

Specification



Rated Output

1.5~2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

3m

type

LSZ-F06/0.5t

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

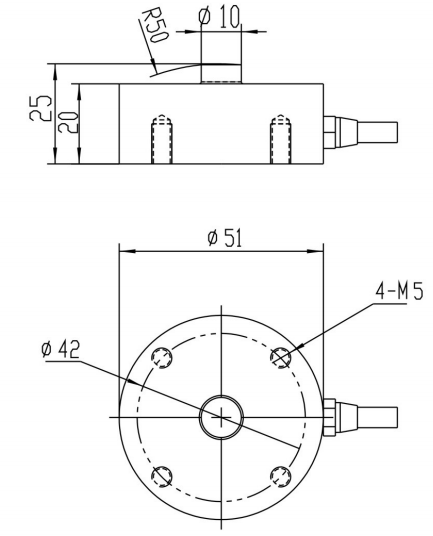

Dimensions

图片 92

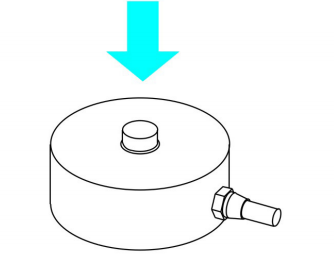

Force Direction

图片 93





Note: The information is for reference only. The details are subject to orders
