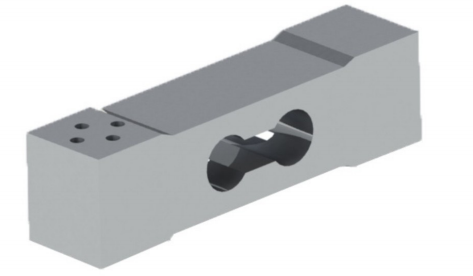

LSZ-S63 Single Point Load Cell

Single point load cell

Senior aluminum

High accuracy

High stability

Easy to install

Applications: Suitable for retail and postal weighing, package hopper scales, bench scales, etc
  • LSZ-S63

  • SZOBTE

  • LSZ-S63

Availability:
Quantity:

Product Description

LSZ-S63 Single Point Load Cell


                                                           Single point Type Series


 Feature



Single point load cell

Senior aluminum

High accuracy

High stability

Easy to install

Applications: Suitable for retail and postal weighing, package hopper scales, bench scales, etc





Capacities

0-100kg, 150kg, 200kg, 250kg, 300kg

  Specification



Rated Output

1.0-2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

450Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

  150mm

type

LSZ-S63/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)











图片 89

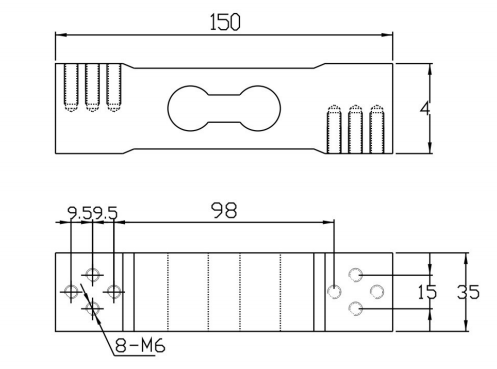

Dimensions

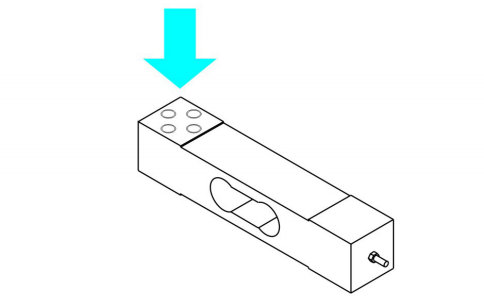

 Force Direction



 图片 90










Note: The information is for reference only. The details are subject to orders
