MRN-03 Dynamic Torque Sensor

Torque measurement

Energy and signal non-contact transmission, output signal digitalized ( additional mode required)

Is designed for both static and dynamic torque measurement

The signal transmission is independent of the measured object rotates or not, no matter of the rotation speed and rotation direction
  • MRN-03

  • SZOBTE

  • MRN-03

Availability:
Quantity:

Product Description

MRN-03 Dynamic Torque Sensor





Feature



Torque measurement

Energy and signal non-contact transmission, output signal digitalized ( additional mode required)

Is designed for both static and dynamic torque measurement

The signal transmission is independent of the measured object rotates or not, no matter of the rotation speed and rotation direction

There is no collecting ring or other ware parts, can undertake long time running in high speed .

High precision, good stability, small size, light weight and easy to install

Positive and negative torque signals can be continuously transmitted without repeated zero cleaning

Strong anti-interference performance

It can be installed in any position and any direction


Capacity

0~±5Nm0~±(10,20,50,100,200,500,1000Nm

Application

Widely used in measurement of speed and torque of motor, generator,  draught fan, aircraft, mine industry, reducer, ship, diesel engine

Instrument parameters

Accuracy

±0.5%F·S、<±0.3% F.S(selectable)

Frequency response

100μs

Nonlinearity

<±0.2%F·S

Repeatability

<±0.1% F·S

Hysteresis

<0.1% F·S

Temp. effect on output

<0.2% F·S

Temp. Effect on zero

<0.2% F·S/10

Output impedance

350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(selectable)

Insulation impedance

>500Ω

Static overload

120% 150% 200%(selectable)

Safe temp. range

-10℃~50℃

Storage temp.

-20~70℃

Power supply

±15V±5%

Power consumption

<200mA

Signal output

0-12V square wave; no-load: 10kHz; forward full rang:15kHz, reverse full range5kHz

Rated torque

10kHz±5kHz

Suitable speed

<5000times/sec

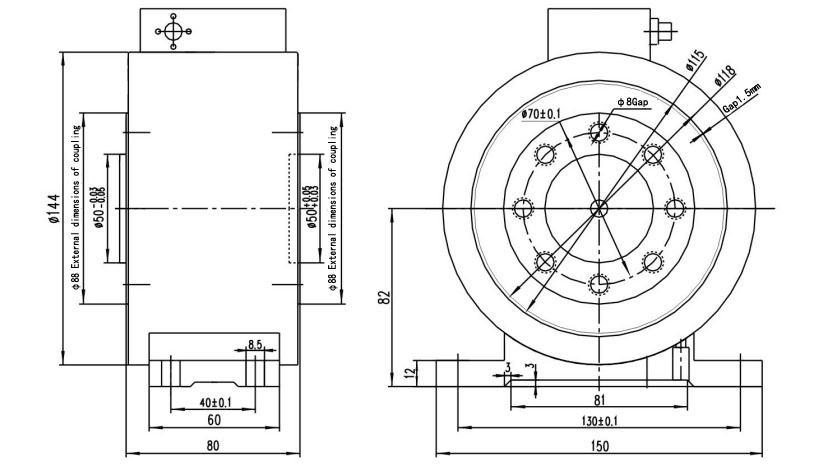

Dimensions



图片 1







Note: The information is for reference only. The details are subject to orders
