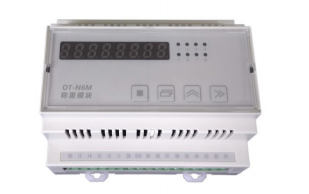

OT-N6M Weighing Module

OT-N6M Weighing Module

 Feature

n Button manual reset and  automatically reset when power on are both available.

n Atomatic zero tracking

n Digital filtering technology, can be sellected according to requirements, filtering amplitude adjustable

n Real-time measurement value comparison output function, can be set two (upper and lower limits)comparison outputs, each can be set with a different comparison value.

n Electronic digital scale.The instrument has been digitally calibrated when it leaves the factory. The customer can complete the system calibration by inputting the total range and sensitivity of the sensor

Instrument parameters

1.Measures speed and accuracy: sampling and data output speed 5~2000 times per second, could be set.

2.Analog input channels: 24 bits ADC chip

3.Sensor power supply: 5 v / 100 mA

4.Signal input range: 0.5-5mV

5.Maximum show : 100000

6.Degree show points: ≤60000

7.Temperature drift:≤10ppm/℃

8.Analog output : the resolution is 12 bits

9.Current output signal:0-20mA or 4-20mA,  Load driven ability: 500 Ω

10. Voltage output signal：0-5V，0-10V or ±5V，Load driven ability 250kΩ

11. Output accuracy : ≤0.2%

12. Switch input: 2

13.Switch output:  2 channel triode OC output, 30 v / 0.3 A maximum driving ability,

Contain TVS protection(36V); 01 is upper limit alarm output, 02 is lower limit alarm output

14.Work power: 24 VDC, < 5 w

15.working environment temperature: - 10-50 ℃, humidity: 10-85% RH (condensation)

  Dimensions

Note: The information is for reference only. The details are subject to orders
